| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53,000 pcs
|
53000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Translator Type | |
| Voltage |

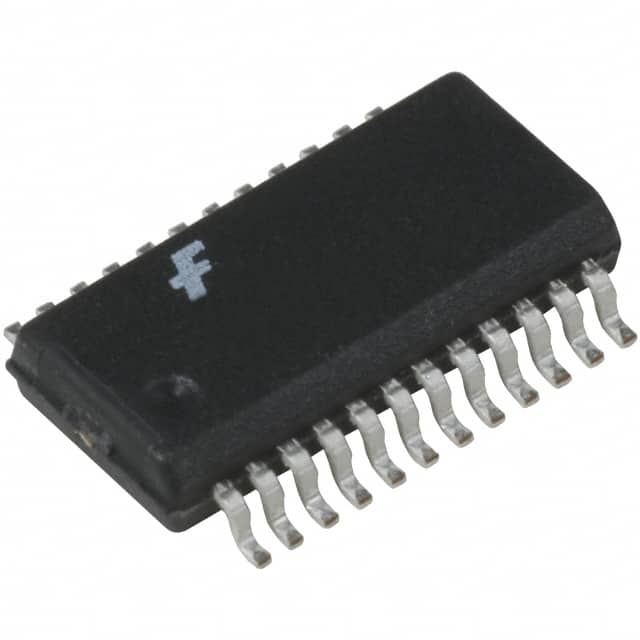

The 74LVX3245QSCX from On Semiconductor is a versatile 8-channel bidirectional voltage level translator designed for applications requiring signal level conversion. It supports a wide operating voltage range of 2.7V to 3.6V, making it suitable for various interfacing needs.
This device features tri-state, non-inverted outputs and operates bidirectionally, allowing for flexible signal routing. The translator is housed in a compact 24-QSOP package, suitable for surface mounting.
Key electrical characteristics include its ability to translate voltage levels efficiently. The operating temperature range is specified from -40°C to 85°C (TA), ensuring reliable performance in diverse environmental conditions. The 74LVX3245QSCX is designed for logic applications where precise voltage level shifting is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is available in 24-SSOP (0.154", 3.90mm Width) and 24-QSOP packages.
It has 8 bidirectional channels.
Yes, it is a bidirectional voltage level translator.
The output type is Tri-State, Non-Inverted.
It is surface mount only.
