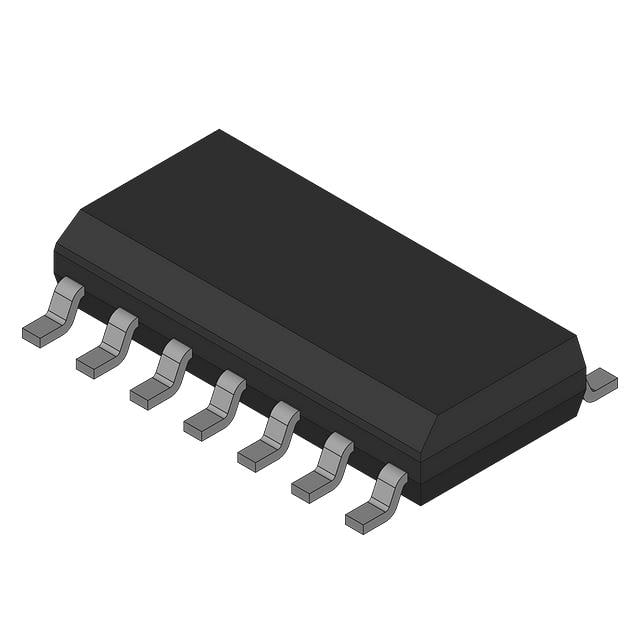

The 74LVX00MX from On Semiconductor is a NAND Gate belonging to the LV/LV-A/LVX/H SERIES. This integrated circuit features 4 circuits with 2 inputs each. It operates within a voltage range of 2V to 3.6V and has a maximum propagation delay of 9.7ns at 3.3V with a 50pF load.
The device is designed for surface mounting and comes in a 14-SOIC package. The operating temperature range is -40°C to 85°C. Key electrical characteristics include an input logic level range of 1.5V to 2.4V and a current rating of 4mA.
This component is suitable for various digital logic applications requiring reliable NAND gate functionality. Its surface mount package and operating temperature range make it adaptable for different electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 74LVX00MX operates from 2V to 3.6V.
The maximum propagation delay is 9.7ns at 3.3V with a 50pF load.
The operating temperature range is -40°C to 85°C.
The 74LVX00MX is available in a 14-SOIC surface mount package.
The 74LVX00MX contains four NAND gates.
Each gate on the 74LVX00MX has two inputs.
