74LVTH162244MTDX The On Semiconductor 74LVTH162244MTDX is a non-inverting buffer with 3-state outputs. It operates from a 2.7V to 3.6V supply and provides 12mA output current.
Mfr Part #:

74LVTH162244MTDX

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor 74LVTH162244MTDX is a non-inverting buffer with 3-state outputs. It operates from a 2.7V to 3.6V supply and provides 12mA output current.
✓ Total Stock: 8,254 pcs
$ Price Range: $1.20

74LVTH162244MTDX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
8,254 pcs
On Request
8254 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LVTH162244MTDX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Elements
Operating Temperature
Operating Voltage
Output Type
SVHC Present
Tape & Reel
View Similar Products (0)

74LVTH162244MTDX Description

Short technical summary and product information.

The 74LVTH162244MTDX from On Semiconductor is a high-speed CMOS logic buffer designed for low-voltage applications. This non-inverting buffer features 3-state outputs, making it suitable for bus configurations.



Key electrical specifications include an operating supply voltage range of 2.7V to 3.6V and an output current capability of 12mA for both high and low states. The device is organized into 4 elements, each supporting 4 bits, for a total of 16 bits.

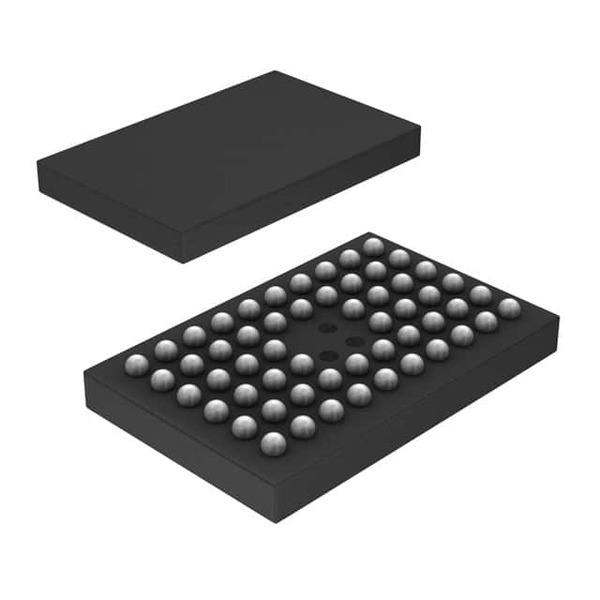

This buffer is housed in a compact 56-BGA Microstar Junior (7x4.5mm) surface mount package, ideal for high-density mounting. It operates within an industrial temperature range of -40°C to 85°C.



The 74LVTH162244MTDX is commonly used in digital logic signal buffering applications within telecommunications, network equipment, computing, and industrial control systems.

74LVTH162244MTDX Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 74LVTH
Canonical Name: 74LVTH162244MTDX Buffer, Non-Inverting
Subcategory: Logic Buffers

74LVTH162244MTDX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74LVTH162244MTDX Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LVTH162244MTDX Features

  • Low voltage, high-speed CMOS logic buffer.
  • Supports 3-state output configurations.
  • Operates from 2.7V to 3.6V supply.
  • Provides 12mA output current.
  • Compact 56-BGA surface mount package.

74LVTH162244MTDX Applications

  • Used in digital logic signal buffering.
  • Suitable for telecommunications equipment.
  • Common in network infrastructure.
  • Applied in industrial control systems.
  • Ideal for high-density board designs.

74LVTH162244MTDX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74LVTH162244MTDX?

2.7V to 3.6V.

What is the operating temperature range?

-40°C to 85°C.

What is the output type?

3-State.

What is the logic type?

Buffer, Non-Inverting.

What package is the device offered in?

56-BGA Microstar Junior (7x4.5).

What is the output current capability?

12mA for both high and low states.

How many elements and bits per element does the device have?

4 elements, 4 bits each.
