SN74LVTZ244PWR
Texas Instruments
The Texas Instruments SN74LVTZ244PWR is an 8-channel, non-inverting buffer/driver designed for 3.3V operation. It supports mixed-mode signal operation and features bus-hold circuitry.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
301,000 pcs
|
301000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

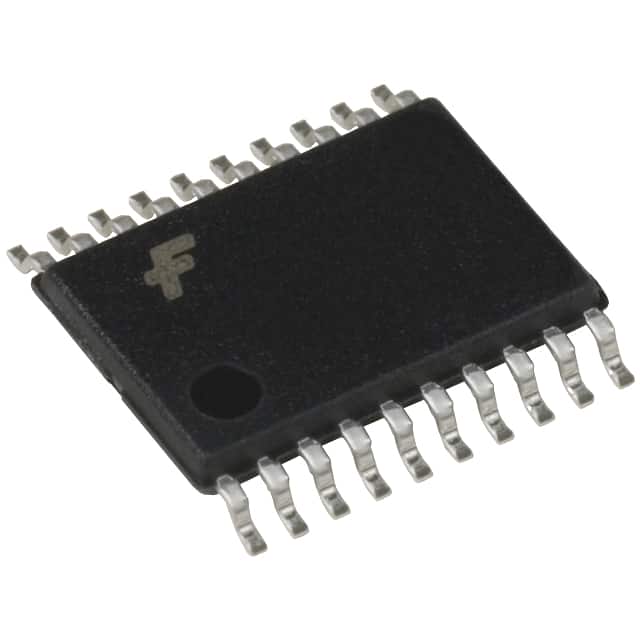

The 74LVT244MTCX is a dual 4-bit buffer with non-inverting outputs and 3-state capability from ON Semiconductor. It operates from a 2.7V to 3.6V supply voltage, making it suitable for low-voltage logic systems. The device features two elements each with four bits, providing a total of eight buffer channels.
Each output can sink or source up to 32mA or 64mA respectively, allowing direct drive of bus lines. The 3-state outputs enable connection to shared data buses. The device is housed in a 20-TSSOP package with a 4.40mm body width, designed for surface mount assembly.
Operating temperature range is -40°C to 85°C, suitable for industrial environments. The buffer is non-inverting, preserving signal polarity. This part is commonly used in memory address driving, clock distribution, and general-purpose bus interfacing.
2.7V to 3.6V.
-40°C to 85°C.
20-TSSOP (0.173", 4.40mm Width) surface mount.
RoHS3 compliant (unverified).
Buffer, Non-Inverting with 3-State output.
4 bits per element, with 2 elements total.
32mA sink and 64mA source.
