| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Features | |
| Industrial Grade | |
| Lead Spacing | |
| Logic Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel |

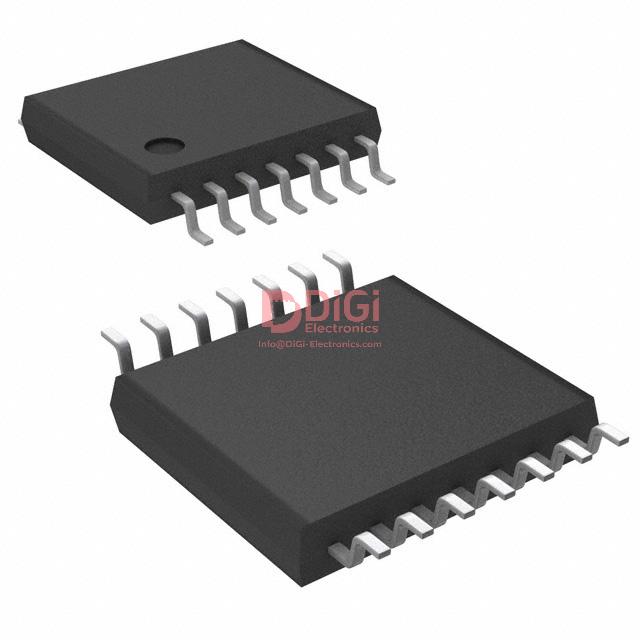

The NXP Semiconductors 74LVC38APW is a versatile NAND Gate IC belonging to the 74LVC series. This component features 4 independent circuits, each with 2 inputs, and an open drain output configuration. It supports a wide supply voltage range from 1.2V to 5.5V, making it suitable for various applications.
The IC has a maximum quiescent current of 40 µA and can source/sink up to 32mA. The input logic levels are defined between 0.7V to 0.8V for low and 1.7V to 2V for high. With a maximum propagation delay of 2.3ns at 3.3V and 50pF, it offers efficient signal processing.
Designed for surface mounting, the 74LVC38APW comes in a compact 14-TSSOP package measuring 4.40mm in width. Its operating temperature range is from -40°C to 125°C, ensuring reliability in demanding environments. This logic gate is ideal for digital circuit designs requiring NAND functionality with open drain outputs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the 74LVC38APW is 1.2V to 5.5V.
The 74LVC38APW has an open drain output.
The maximum propagation delay is 2.3ns at 3.3V with a 50pF load.
The operating temperature range is -40°C to 125°C.
The 74LVC38APW is supplied in a 14-TSSOP package.
