| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,257 pcs
|
27257 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Output Type | |
| Voltage Supply |

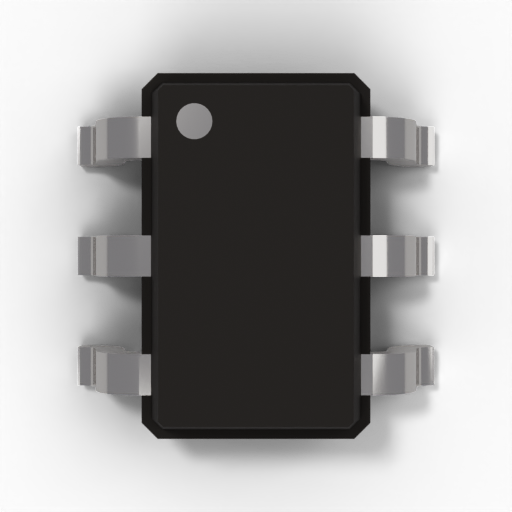

The 74LVC2G17DW-7 is a dual Schmitt trigger buffer IC manufactured by Diodes Incorporated. This component is designed for general-purpose logic applications and features standard push-pull outputs. It operates across a wide supply voltage range of 1.65V to 5.5V, making it suitable for mixed-voltage systems due to its 5.5V input tolerance.
Key electrical characteristics include an output drive of ±24mA at 3.0V and IOFF circuitry for power-down protection. The IC is housed in a compact SOT-363 package, which is a tiny surface-mount device with a 0.65mm pin pitch. This breakout board version facilitates breadboard prototyping by bringing the 6 pins out to standard 0.1" spacing.
Ideal applications include voltage level shifting, signal conditioning, and general-purpose logic functions in consumer electronics. The non-inverting buffer configuration with Schmitt trigger inputs provides noise immunity and clean signal transitions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.65V to 5.5V.
SOT-363 (6-pin surface mount).
It is a dual non-inverting buffer.
Yes, inputs are Schmitt trigger type.
±24mA at 3.0V supply (push-pull).
Yes, inputs tolerate up to 5.5V.
Two.
