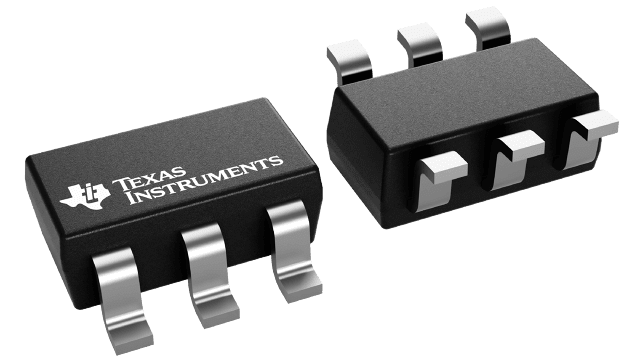

The 74LVC1G3157DBVRG4 from Texas Instruments is a single-pole double-throw (SPDT) analog switch configured as a 2:1 multiplexer/demultiplexer. It features a low on-state resistance of 15 Ohm with channel-to-channel matching of 100 mOhm, ensuring consistent signal integrity.
With a wide single-supply voltage range of 1.65V to 5.5V and a typical supply current of just 1 µA, this device is well-suited for battery-powered and low-power applications. It delivers a -3dB bandwidth of 300 MHz and fast switching times of 5.7 ns (on) and 3.8 ns (off), making it suitable for high-speed signal routing.
The switch is designed for surface mount assembly in a compact SOT-23-6 package and operates over a temperature range of -40°C to 85°C. Typical crosstalk is -54 dB at 10 MHz, and charge injection is 7 pC, balancing performance with low distortion.
It is a single-pole double-throw (SPDT) switch with a 2:1 multiplexer/demultiplexer circuit.
The maximum on-state resistance is 15 ohms, with channel-to-channel matching of 100 milliohms.
The supply voltage range is 1.65V to 5.5V single supply.
The typical -3dB bandwidth is 300 MHz.
Maximum turn-on time is 5.7 ns and turn-off time is 3.8 ns.
The operating temperature range is -40°C to 85°C.
It is available in a SOT-23-6 surface mount package, supplied in tape and reel.
