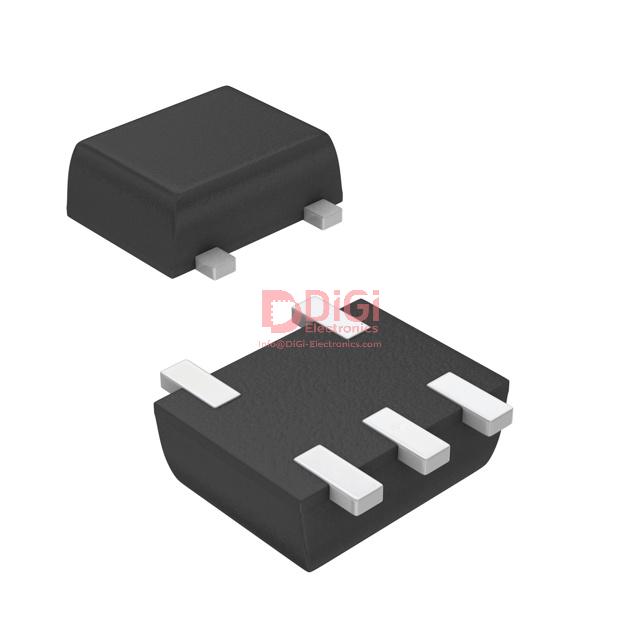

The 74LVC1G08Z-7 from Diodes Incorporated is a single, 2-input positive AND gate designed for general-purpose logic applications. It features a wide supply voltage range from 1.65V to 5.5V, making it suitable for mixed-voltage environments. The inputs are tolerant to 5.5V.
This AND gate offers a standard push-pull output with an output drive of ±24mA at 3.3V. It has a low quiescent current of 200µA maximum and a fast propagation delay of 5.5ns at 5V and 50pF. The device supports partial power-down applications with its I OFF circuitry.
The 74LVC1G08Z-7 is available in a compact SOT-553 surface-mount package. It is designed for applications such as voltage level shifting, general-purpose logic, and power-down signal isolation in various electronic products like PCs, mobile devices, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.65V to 5.5V.
It is available in a SOT-553 surface-mount package.
The operating temperature range is -40°C to 125°C.
Yes, it is totally lead-free.
Yes, it is halogen and antimony free.
The maximum propagation delay is 5.5ns at 5V with a 50pF load.
It performs the AND logic function with two inputs.
