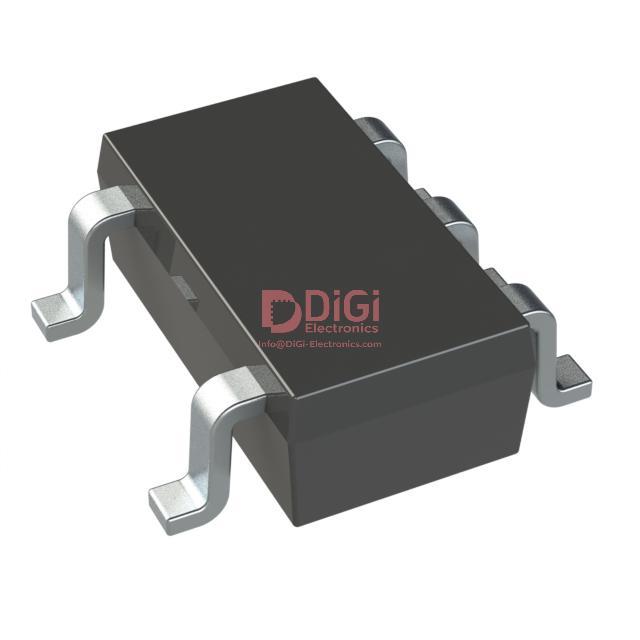

74LVC1G02DBV The Texas Instruments 74LVC1G02DBV is a single-channel NOR gate IC designed for logic applications. It operates within a voltage range of 1.65V to 5.5V and is housed in a surface-mount SOT-23-5 package.
Mfr Part #:

74LVC1G02DBV

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments 74LVC1G02DBV is a single-channel NOR gate IC designed for logic applications. It operates within a voltage range of 1.65V to 5.5V and is housed in a surface-mount SOT-23-5 package.
✓ Total Stock: 361,600 pcs
$ Price Range: $0.22

74LVC1G02DBV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
361,600 pcs
On Request
361600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LVC1G02DBV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Current
Quiescent Current
SVHC Present
Supply Voltage
View Similar Products (0)

74LVC1G02DBV Description

Short technical summary and product information.

The 74LVC1G02DBV from Texas Instruments is a high-performance, low-power NOR gate integrated circuit. This single-channel logic gate features two inputs and is designed to operate across a wide supply voltage range from 1.65V to 5.5V.



Key electrical characteristics include a low quiescent current of 2 µA and output currents of 32mA for both high and low states. The maximum propagation delay is specified at 4.3ns at 5V with a 50pF load capacitance. The device is built for reliability, operating within a temperature range of -40°C to 85°C.



Packaged in a compact SOT-23-5 surface-mount case (also referred to as SC-74A, SOT-753), the 74LVC1G02DBV is suitable for space-constrained applications. Its robust design and versatile voltage range make it a suitable choice for various digital logic circuits and system designs where efficient and reliable NOR gate functionality is required.

74LVC1G02DBV Quick Information

Product Type: NOR Gate IC
Series: 7SZ
Canonical Name: 74LVC1G02DBV NOR Gate IC
Subcategory: NOR Gate

74LVC1G02DBV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74LVC1G02DBV Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LVC1G02DBV Features

  • Single-channel NOR gate IC.
  • Wide supply voltage from 1.65V to 5.5V.
  • Low quiescent current of 2 µA.
  • Fast propagation delay of 4.3ns.
  • Compact SOT-23-5 surface-mount package.

74LVC1G02DBV Applications

  • Digital logic circuit implementation.
  • Embedded system design.
  • Signal routing and control.
  • Low-power electronic devices.

74LVC1G02DBV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74LVC1G02DBV?

1.65V to 5.5V.

What package type is the 74LVC1G02DBV available in?

SOT-23-5.

What is the operating temperature range of the 74LVC1G02DBV?

-40°C to 85°C.

What is the logic type of the 74LVC1G02DBV?

NOR Gate.

How many inputs does the 74LVC1G02DBV have?

2 inputs.

What is the maximum propagation delay of the 74LVC1G02DBV?

4.3ns at 5V, 50pF.

What is the output current capability of the 74LVC1G02DBV?

32mA for both high and low logic levels.
