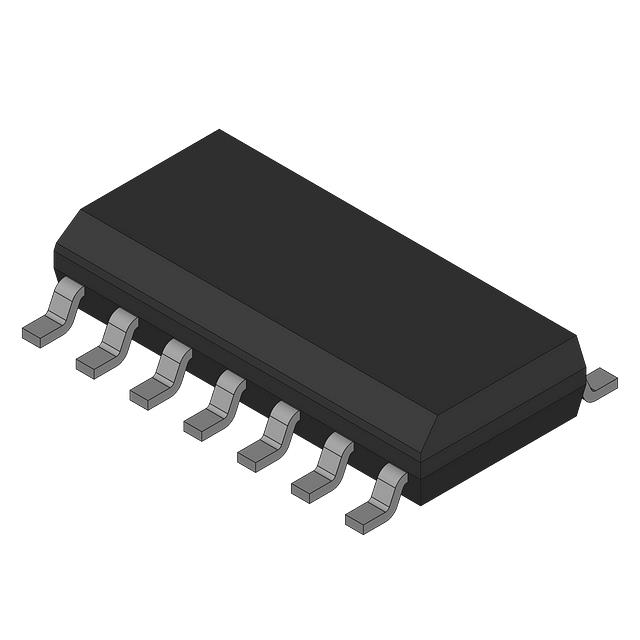

The 74LVC14AD is a 6-channel inverter integrated circuit from Phihong USA, featuring Schmitt Trigger inputs for enhanced noise immunity. This logic IC operates with a supply voltage of up to 3.6V and offers a maximum propagation delay of 8ns at 3.3V with a 50pF load capacitance.
Designed for surface mounting, the 74LVC14AD comes in a 14-TSSOP package. It has a quiescent current of 40 µA and provides output currents of 24mA for both high and low states. The input logic levels are defined between 0.75V to 1.5V for low and 1V to 2V for high.
This component is suitable for various digital logic applications requiring inverting functions with signal conditioning. Its operating temperature range is from -40°C to 125°C, making it robust for different environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 3.6V.
The 74LVC14AD is available in a 14-TSSOP (0.173") surface mount package.
The operating temperature range is -40°C to 125°C.
The maximum propagation delay is 8ns at 3.3V with a 50pF load.
The output can source and sink 24mA.
Low-level input voltage is 0.75V to 1.5V; high-level input voltage is 1V to 2V.
The 74LVC14AD contains 6 independent inverter circuits with 6 inputs.
