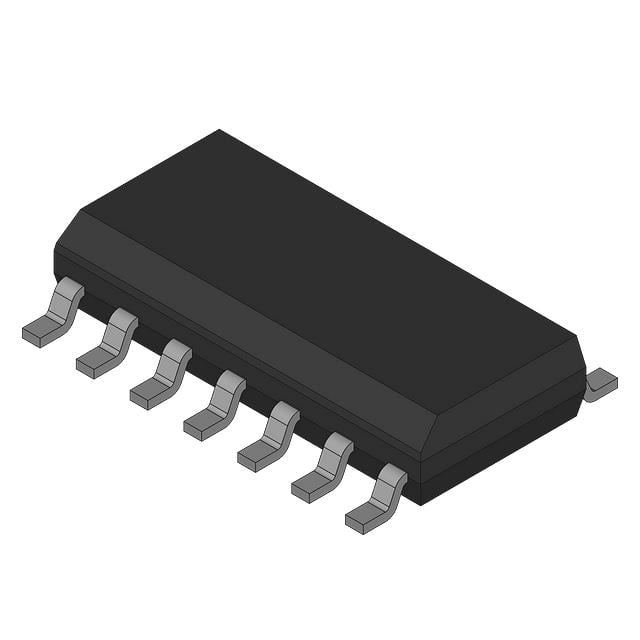

The 74LVC02A is a quad 2-input NOR gate from Nexperia, designed for versatile applications. It features a wide supply voltage range from 1.2 V to 3.6 V, allowing direct interface with TTL levels and use in mixed 3.3 V and 5 V systems.
This device offers overvoltage tolerant inputs up to 5.5 V and Schmitt-trigger action for improved noise immunity and tolerance to slower input rise and fall times. It is specified for operation across a broad temperature range of -40 °C to +125 °C.
The 74LVC02AD,118 is available in SO14, TSSOP14, and DHVQFN14 packages, suitable for surface mount applications. Its CMOS low power consumption makes it an efficient choice for various digital logic designs.
Key electrical characteristics include robust ESD protection, exceeding 2000 V for HBM class 2 and 1000 V for CDM class C3. The device functions as a standard NOR gate, where the output is HIGH only when all inputs are LOW.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.2 V to 3.6 V.
It is available in SO14, TSSOP14, and DHVQFN14 packages.
The operating temperature range is -40 °C to +125 °C.
It is a NOR gate with 4 independent circuits and 2 inputs each.
Yes, inputs are tolerant up to 5.5 V.
ESD protection exceeds 2000 V HBM (class 2) and 1000 V CDM (class C3).
