74LS221

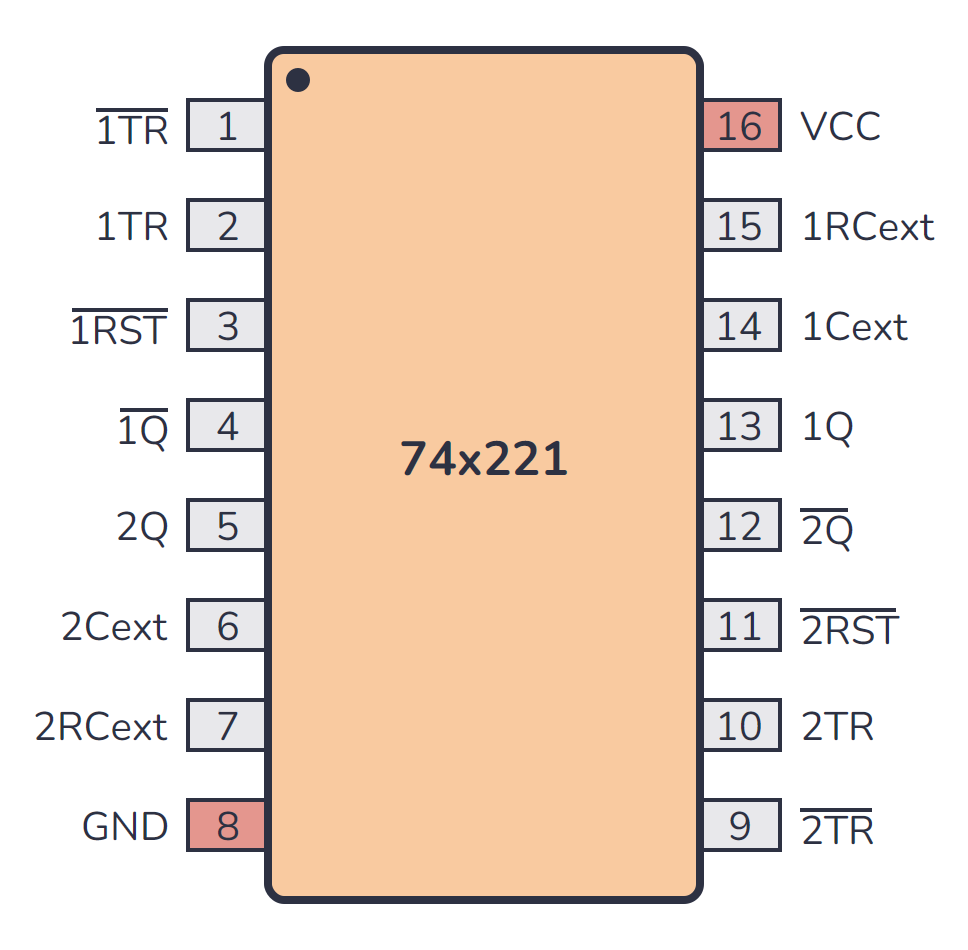

The 74LS221 is a dual monostable multivibrator, also known as a one-shot circuit, from Mitsubishi Electric. It is part of the 7400 series of integrated circuits and is designed to produce single output pulses of a specific width when triggered. Each monostable circuit has two trigger inputs, one normal and one active LOW, allowing for flexible triggering.

This IC is commonly used in timing applications such as generating precise time delays, pulse stretching, and debouncing switches. The output pulse width can be adjusted using external resistors and capacitors connected to the chip, following the formula tW = 0.7 * Rext * Cext for external capacitors larger than 1000 pF.

The 74LS221 operates at a VCC voltage of 5V. It comes in a 16-pin package. The 74LS version can source a maximum of 0.4 mA or sink a maximum of 8 mA from an output pin. These characteristics make it suitable for various digital timing control applications.

This component is ideal for designers needing reliable pulse generation and timing control within their digital systems. Its dual monostable configuration allows for independent timing functions within a single package.
