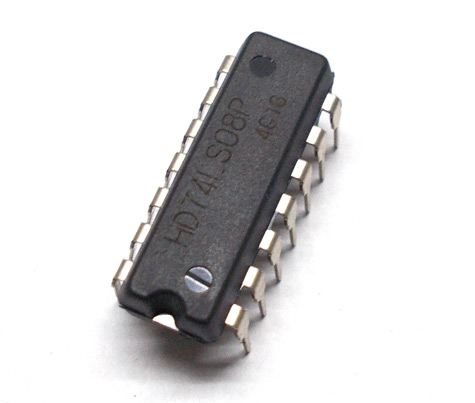

74LS08 The 74LS08 is a quadruple 2-input AND gate IC from Texas Instruments, designed for high-speed logic operations. It operates at 5V and features TTL outputs.
Mfr Part #:

74LS08

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The 74LS08 is a quadruple 2-input AND gate IC from Texas Instruments, designed for high-speed logic operations. It operates at 5V and features TTL outputs.
✓ Total Stock: 226,000 pcs
$ Price Range: $0.22

74LS08 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
226,000 pcs
On Request
226000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LS08 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Operating Temperature
Operating Voltage
Output Current
SVHC Present
Storage Temperature
View Similar Products (0)

74LS08 Description

Short technical summary and product information.

The 74LS08 is a versatile integrated circuit manufactured by Texas Instruments, belonging to the 74XXYY series. It contains four independent 2-input positive AND gates, making it suitable for applications requiring AND logic operations. Each gate is designed with Schottky transistors for high-speed performance, indicated by typical rise and fall times of 18ns.



This IC operates within a recommended voltage range of +4.75V to +5.25V, with a maximum supply voltage of 7V. It can source a maximum current of 8mA per gate output and provides TTL-compatible outputs. The operating temperature range is from 0°C to 70°C, with a storage temperature range of -65°C to 150°C.



The 74LS08 is available in various packages, including CDIP, CFP, and LCCC, typically supplied in standard quantities of 1 or 14 pins. Its widespread availability and low cost make it a popular choice for digital logic circuits where reliable AND operations are needed at high speeds.

74LS08 Quick Information

Product Type: AND Gate IC
Series: 74LS
Canonical Name: 74LS08 Quadruple 2-Input Positive AND Gate
Subcategory: AND Gate

74LS08 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

74LS08 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LS08 Features

  • Contains four 2-input AND gates.
  • Designed for high-speed logic operations.
  • Operates at a 5V recommended voltage.
  • Provides TTL compatible outputs.
  • Available in multiple package options.

74LS08 Applications

  • Used for AND logic operations.
  • Suitable for high-speed digital systems.
  • Incorporated in various logic circuits.
  • Enables complex logic functions.

74LS08 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the 74LS08 IC?

The recommended operating voltage for the 74LS08 is 5V, with an operating range of +4.75V to +5.25V.

What is the operating temperature range of the 74LS08?

The 74LS08 operates within a temperature range of 0°C to 70°C.

How many AND gates are included in the 74LS08 IC?

The 74LS08 IC contains four independent 2-input AND gates.

What type of outputs does the 74LS08 provide?

The 74LS08 provides TTL outputs.
