| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Product Type | |
| Supply Current | |
| Voltage |
The onsemi 74LCX244MTCX is an advanced high-speed CMOS logic buffer and line driver. This integrated circuit provides 8 channels of buffering with 3-state, non-inverting outputs, making it suitable for various signal management applications.
Key electrical specifications include an operating voltage range from 2.0V to 3.6V, with inputs and outputs that are 5V tolerant. It offers a maximum propagation delay time of 7.8ns at CL and supports output currents of up to 24mA (low level) and -24mA (high level). The device has a supply current of 100mA.

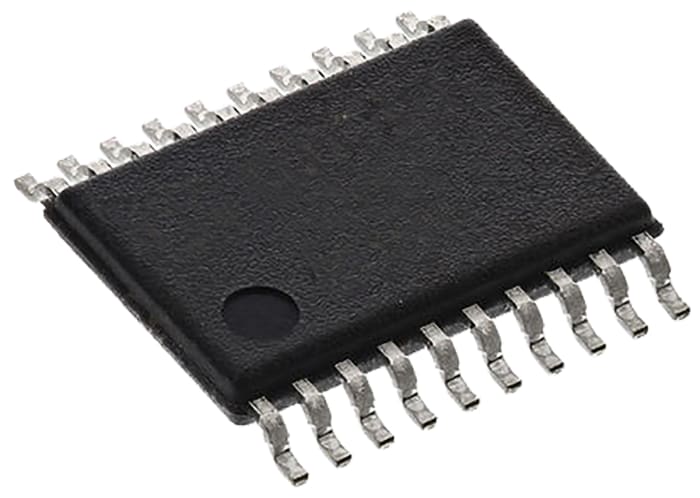

Mechanically, the 74LCX244MTCX is housed in a 20-pin TSSOP surface-mount package with dimensions of 6.5mm in length and 1.2mm in height. It operates across a wide temperature range, from -40°C to 85°C.
This component is part of the 74LCX244 series, designed for high-speed, low-voltage applications. Its robust specifications and versatile functionality make it a reliable choice for digital interface and signal buffering needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.0V to 3.6V.
The operating temperature range is -40°C to +85°C.
The 74LCX244MTCX is offered in a 20-pin TSSOP package.
The output can source or sink up to 24mA.
Yes, the device features 5V tolerant inputs and outputs.
