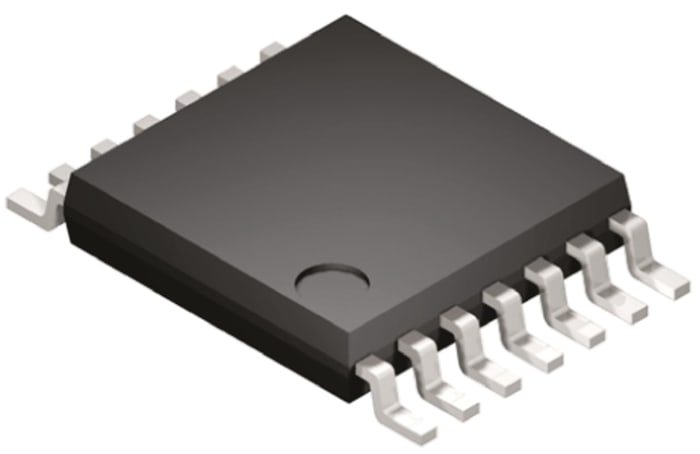

74LCX14MTCX The onsemi 74LCX14MTCX is a 6-element Schmitt Trigger Input Inverter IC in a 14-Pin TSSOP package. It operates within a voltage range of 2V to 3.6V.
Mfr Part #:

74LCX14MTCX

Available from 1 distributors
Mfr Name: NA
NA
The onsemi 74LCX14MTCX is a 6-element Schmitt Trigger Input Inverter IC in a 14-Pin TSSOP package. It operates within a voltage range of 2V to 3.6V.
✓ Total Stock: 11 pcs
$ Price Range: $0.22

74LCX14MTCX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74LCX14MTCX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Height
Input Type
Lead Style
Length
Operating Temperature
SVHC Present
Voltage
View Similar Products (0)

74LCX14MTCX Description

Short technical summary and product information.

The onsemi 74LCX14MTCX is a high-speed, low-voltage CMOS logic inverter IC featuring six independent Schmitt trigger inputs. This component is designed for advanced high-speed applications and operates within a supply voltage range of 2.0V to 3.6V, with 5V tolerant inputs and outputs.



Key electrical specifications include a maximum propagation delay of 7.5ns at a specified load capacitance (CL). It offers a maximum high-level output current of -24mA and a maximum low-level output current of 24mA. The logic family is LCX, ensuring compatibility with other devices in this series.



Packaged in a 14-Pin TSSOP, the 74LCX14MTCX is suitable for surface mounting. It operates reliably across a wide temperature range from -40°C to 85°C. This inverter is ideal for signal conditioning and waveform shaping applications where precise switching thresholds are required.

74LCX14MTCX Quick Information

Product Type: Schmitt Trigger Inverter IC
Series: 74LCX14
Canonical Name: onsemi 74LCX14MTCX 6-Channel Schmitt Trigger Inverter
Subcategory: Inverter

74LCX14MTCX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74LCX14MTCX Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LCX14MTCX Features

  • Six independent Schmitt trigger inverters.
  • Operates from 2.0V to 3.6V supply.
  • 5V tolerant inputs and outputs.
  • Fast propagation delay of 7.5ns.
  • Wide temperature range: -40°C to 85°C.

74LCX14MTCX Applications

  • Ideal for noise filtering in digital circuits.
  • Used for signal inversion with hysteresis.
  • Suitable for low-voltage logic systems.
  • Can interface with 5V logic due to tolerant inputs.
  • Common in microcontroller I/O conditioning.

74LCX14MTCX FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74LCX14MTCX?

The operating voltage range is 2V to 3.6V.

What is the propagation delay of the 74LCX14MTCX?

The maximum propagation delay is 7.5ns with a specified load capacitance (CL).

What is the output current capability?

The maximum high level output current is -24mA, and the maximum low level output current is 24mA.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package does the 74LCX14MTCX come in?

It comes in a 14-pin TSSOP surface-mount package.

Does the 74LCX14MTCX have Schmitt trigger inputs?

Yes, all six inverters have Schmitt trigger inputs for hysteresis.

What logic family is the 74LCX14MTCX part of?

It is part of the LCX logic family.
