Mfr Part #:

74LCX04MTR

Available from 1 distributors

Mfr Name: ST

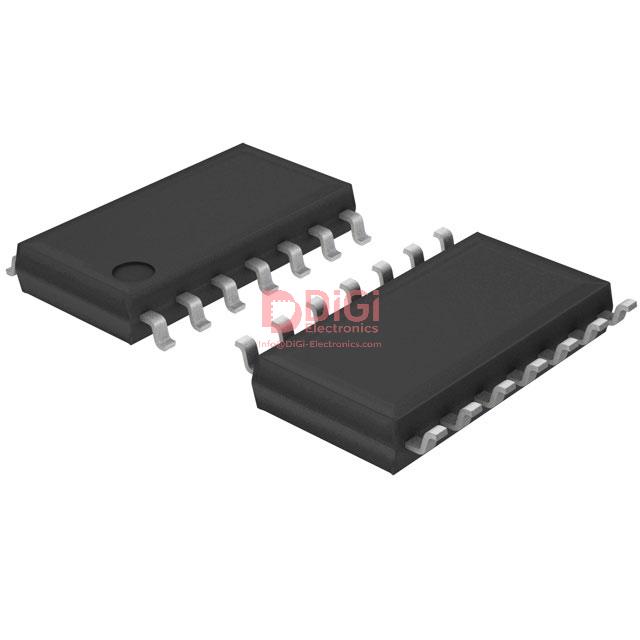

The ST 74LCX04MTR is a low voltage CMOS hex inverter. It operates from 2.0V to 3.6V and features 5V tolerant inputs.

✓ Total Stock: 452,000 pcs

$ Price Range: $0.22

74LCX04MTR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	452,000 pcs On Request	452000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

74LCX04MTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ST
Input Voltage	0V to 5.5V
Latch-up Performance	>500mA
Mounting Type	Surface Mount
Quiescent Current	1µA
SVHC Present	Not Present
Supply Voltage	2.0V to 3.6V

View Similar Products (0)

74LCX04MTR Description

Short technical summary and product information.

The ST 74LCX04MTR is a hex inverter IC from STMicroelectronics, designed for low voltage and high-speed applications. It operates within a supply voltage range of 2.0V to 3.6V, with data retention possible down to 1.5V. The inputs are 5V tolerant, allowing interface with 5V signal environments.

This device offers high-speed performance with a maximum propagation delay of 4.3ns at 3.3V and 50pF. It provides symmetrical output impedance with a minimum of ±24mA for both high and low level output currents at VCC = 3.0V to 3.6V. The 74LCX04MTR is pin and function compatible with the 74 Series 04.

Packaged in a surface-mount 14-SOIC package, this hex inverter is suitable for various digital logic applications requiring signal inversion. It features protection circuits against static discharge, offering ESD immunity.

Key electrical characteristics include a low quiescent current of 1µA and a wide operating temperature range from -40°C to 125°C. The device is designed for efficient power consumption, making it ideal for battery-powered or low-power systems.

74LCX04MTR Quick Information

Product Type: Hex Inverter

Series: 74LVC

Canonical Name: ST 74LCX04MTR Hex Inverter

Subcategory: Inverter

74LCX04MTR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

74LCX04MTR Estimated Pricing

Qty	Low	High
1+	$0.22	$0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74LCX04MTR Features

Low voltage CMOS hex inverter.
5V tolerant inputs for flexible interfacing.
High speed with 4.3ns max propagation delay.
±24mA symmetrical output drive capability.
Surface mount 14-SOIC package.

74LCX04MTR Applications

Digital logic signal inversion.
Interfacing between different voltage levels.
Low power consumption applications.
High-speed digital circuits.

74LCX04MTR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the supply voltage range of the 74LCX04MTR?

2.0V to 3.6V.

What package does the 74LCX04MTR come in?

14-SOIC (0.209", 5.30mm Width) surface mount package.

What is the operating temperature range?

The manufacturer page specifies -40°C to 125°C, while the datasheet specifies -55°C to 125°C.

What is the propagation delay of the 74LCX04MTR?

4.3ns at 3.3V, 50pF (manufacturer page) and 5.2ns at 3V (datasheet).

What is the output current capability?

±24mA at VCC=3.0-3.6V, ±12mA at VCC=2.7V.

What is the ESD performance?

>2000V HBM and >200V MM.

What is the quiescent current?

1µA maximum.
