Mfr Part #:

74HCT1G126GW

The NXP Semiconductors 74HCT1G126GW is a single buffer/line driver with a 3-state output. It features a wide supply voltage range and operates across a broad temperature spectrum.

✓ Total Stock: 54,766 pcs

$ Price Range: $1.20

74HCT1G126GW Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	54,000 pcs On Request	54000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	766 pcs On Request	766 pcs	On Request	1	On Request	On Request	11+	On Request	On Request

74HCT1G126GW Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NXP Semiconductors
Latch-up Performance	> 100 mA
Lead Style	Gull-Wing
Mounting Type	Surface Mount
Operating Temperature	-40 °C to +125 °C
SVHC Present	Not Present

View Similar Products (0)

74HCT1G126GW Description

Short technical summary and product information.

The 74HCT1G126GW from NXP Semiconductors is a single buffer/line driver designed for 3-state output applications. It supports a wide supply voltage range from 2.0 V to 6.0 V, making it versatile for various electronic designs.

This component offers CMOS or TTL input levels depending on the specific variant. It is specified for operation across a wide temperature range of -40°C to +125°C, ensuring reliability in demanding environments. The device also includes ESD protection exceeding 2000 V (HBM) and 1000 V (CDM).

Available in a 5-TSSOP package, the 74HCT1G126GW is suitable for surface mounting. Its symmetrical output impedance and balanced propagation delays contribute to stable performance in digital systems. The latch-up performance exceeds 100 mA per JESD 78 Class II Level B.

Key electrical characteristics include an output current of 6mA for both high and low states, and it complies with JEDEC standards JESD8C and JESD7A.

74HCT1G126GW Quick Information

Product Type: Bus buffer/line driver

Series: 74HCT

Canonical Name: 74HCT1G126GW Bus buffer/line driver; 3-state

Subcategory: 3-state

74HCT1G126GW Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

74HCT1G126GW Estimated Pricing

Qty	Low	High
1+	$1.20	$1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HCT1G126GW Features

Single buffer/line driver with 3-state output.
Wide supply voltage range from 2.0 V to 6.0 V.
Specified for -40°C to +125°C operation.
Robust ESD protection exceeding 2000 V HBM.

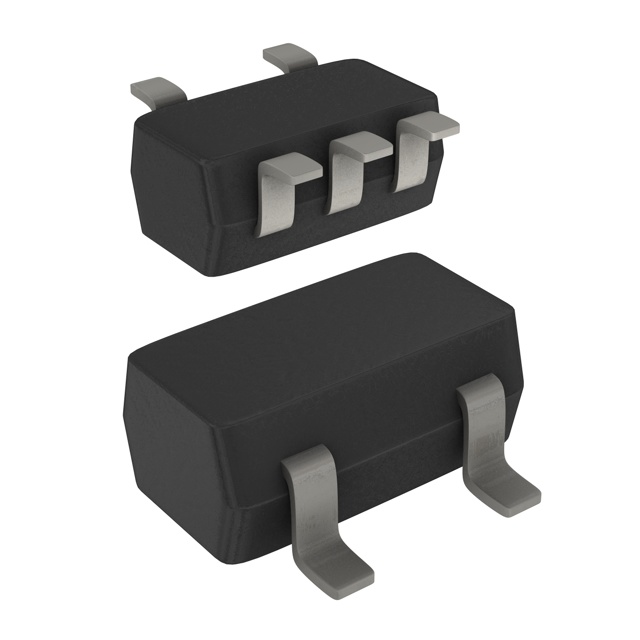

Available in 5-TSSOP surface mount package.

74HCT1G126GW Applications

Used in digital logic circuits.
Suitable for bus interfacing.
Ideal for signal buffering.
Applications requiring 3-state outputs.

74HCT1G126GW FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the 74HCT1G126GW?

The operating voltage range is 2.0V to 6.0V.

What is the operating temperature range?

-40°C to +125°C.

What package options are available?

The 74HCT1G126GW is available in surface-mount packages: 5-TSSOP, SC-70-5, SOT-353, TSSOP5, and SC-74A.

What are the input logic levels?

The 74HCT1G126GW has TTL-compatible input levels.

What is the output current capability?

The output high and low current are both 6 mA.

What ESD protection does the device have?

ESD protection exceeds 2000V HBM and 1000V CDM.

What is the latch-up performance?

Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
