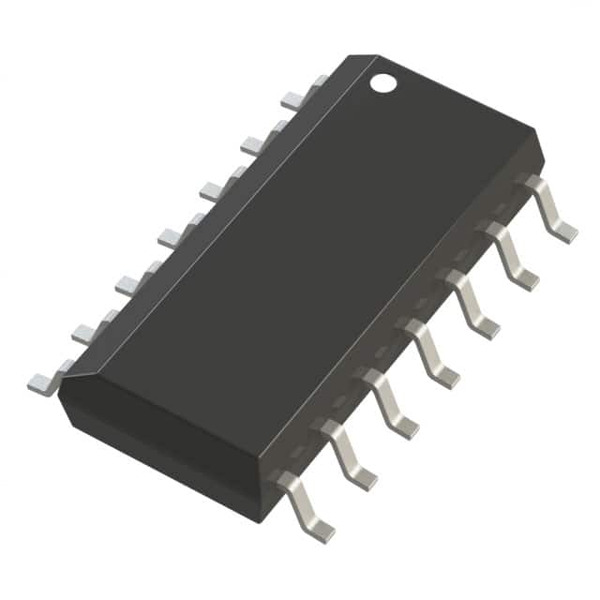

The 74HCT14D,653 from Nexperia is a hex inverter featuring Schmitt-trigger inputs. This integrated circuit is designed to transform slowly changing input signals into sharply defined, jitter-free output signals, making it suitable for applications requiring signal conditioning.
Key electrical characteristics include a wide supply voltage range from 2.0 V to 6.0 V and CMOS low power dissipation. The device boasts high noise immunity and unlimited input rise and fall times. It also includes clamp diodes on the inputs, allowing for current-limiting resistors to interface inputs to voltages exceeding VCC.
This component is specified for operation across a temperature range of -40 °C to +125 °C. It complies with JEDEC standards JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V). ESD protection is provided, exceeding 2000 V for HBM (class 2) and 1000 V for CDM (class C3).
The 74HCT14D,653 is available in a 14-lead SOIC package (SO14). Its applications include wave and pulse shapers, as well as astable and monostable multivibrators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.0V to 6.0V.
The operating temperature range is -40°C to +125°C.
It comes in an SO14 surface-mount package.
ESD protection exceeds 2000V HBM and 1000V CDM.
Latch-up performance exceeds 100mA per JESD78 Class II Level B.
Yes, it complies with JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V).
