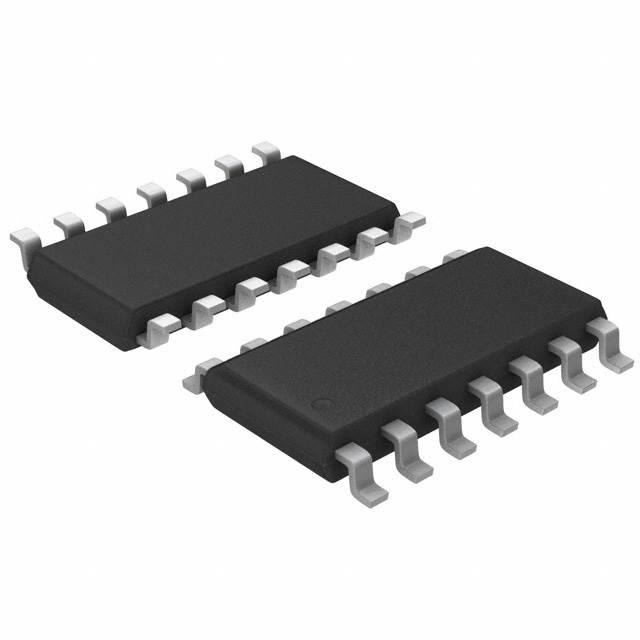

74HCT14 The 74HCT14 is a hex inverter with Schmitt trigger inputs from On Semiconductor. It operates from 4.5V to 5.5V with a maximum propagation delay of 31ns at 5.5V and 50pF.
Mfr Part #:

74HCT14

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The 74HCT14 is a hex inverter with Schmitt trigger inputs from On Semiconductor. It operates from 4.5V to 5.5V with a maximum propagation delay of 31ns at 5.5V and 50pF.
✓ Total Stock: 125 pcs
$ Price Range: $0.22

74HCT14 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HCT14 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Halogen Free
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Propagation Delay
Quiescent Current
Voltage
View Similar Products (0)

74HCT14 Description

Short technical summary and product information.

The 74HCT14 is a hex inverter with Schmitt trigger inputs from On Semiconductor. It operates from a 4.5V to 5.5V supply voltage and features TTL voltage level compatible inputs. The device offers a maximum propagation delay of 31ns at 5.5V and 50pF load capacitance.



Each of the six inverters incorporates Schmitt trigger action at all inputs, providing hysteresis for noise immunity and slow input signal conditioning. The device sinks or sources 4mA of output current at VCC = 4.5V and has a low quiescent current of 1µA maximum.



The 74HCT14 is available in a 14-SOIC surface mount package and operates over a temperature range of -40°C to +125°C. It is suitable for applications requiring clean switching from noisy or slowly changing input signals.

74HCT14 Quick Information

Product Type: Hex Inverter with Schmitt Trigger Inputs
Series: 74HCT
Canonical Name: 74HCT14 Hex Inverter with Schmitt Trigger Inputs

74HCT14 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

74HCT14 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HCT14 Features

  • Operates from 4.5V to 5.5V supply.
  • Maximum propagation delay of 31ns.
  • Schmitt trigger action at all inputs.
  • TTL voltage level compatible inputs.
  • Low quiescent current of 1µA.

74HCT14 Applications

  • Used in PC and notebook logic circuits.
  • Suitable for TV and DVD player applications.
  • Ideal for networking equipment logic.
  • Used in computer peripherals and hard drives.
  • Common in set-top box and DVR designs.

74HCT14 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74HCT14?

The 74HCT14 operates from 4.5V to 5.5V.

What is the propagation delay of the 74HCT14?

The maximum propagation delay is 31ns at 5.5V and 50pF load.

What is the operating temperature range of the 74HCT14?

The operating temperature range is -40°C to +125°C.

What package is the 74HCT14 available in?

The 74HCT14 is available in a 14-SOIC surface mount package.

Does the 74HCT14 have Schmitt trigger inputs?

Yes, the 74HCT14 features Schmitt trigger action at all inputs.

What is the output current capability of the 74HCT14?

The 74HCT14 can sink or source 4mA at VCC = 4.5V.

What is the quiescent current of the 74HCT14?

The maximum quiescent current is 1µA.
