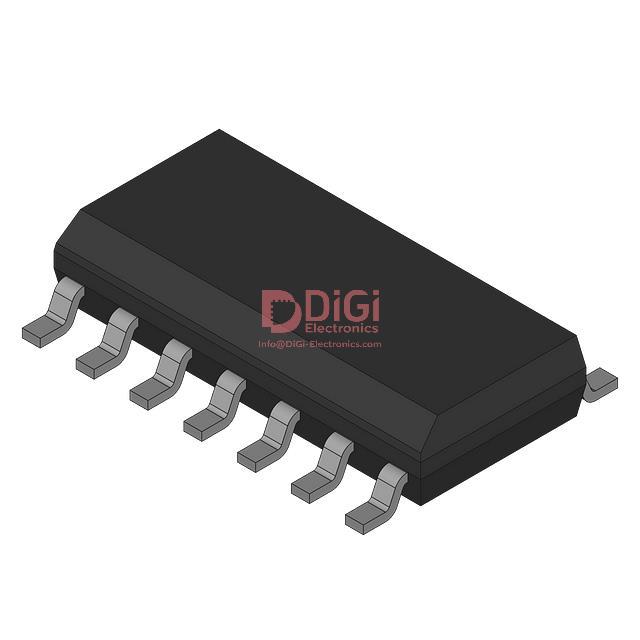

74HCT132D The NXP Semiconductors 74HCT132D is a quad 2-input NAND gate with Schmitt trigger inputs. It operates from a 4.5V to 5.5V supply.
Mfr Part #:

74HCT132D

Available from 1 distributors
Mfr Name: Phihong USA
Phihong USA
The NXP Semiconductors 74HCT132D is a quad 2-input NAND gate with Schmitt trigger inputs. It operates from a 4.5V to 5.5V supply.
✓ Total Stock: 4,730 pcs
$ Price Range: $0.22

74HCT132D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
4,730 pcs
On Request
4730 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HCT132D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current - Quiescent (Max)
Features
Halogen Free
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Voltage Supply
View Similar Products (0)

74HCT132D Description

Short technical summary and product information.

The 74HCT132D from NXP Semiconductors is a high-speed Si-gate CMOS device featuring four independent 2-input NAND gates, each with Schmitt trigger inputs. This configuration allows for the transformation of slowly changing input signals into sharply defined, jitter-free output signals, making it suitable for wave and pulse shaping applications.



This IC operates within a supply voltage range of 4.5V to 5.5V and offers a maximum propagation delay of 33ns at 4.5V with a 50pF load capacitance. The Schmitt trigger inputs provide hysteresis, ensuring reliable switching even with noisy input signals. The device is specified for operation across a wide temperature range of -40°C to +125°C.



Designed for surface mounting, the 74HCT132D comes in a 14-SO package. Its inputs include clamp diodes, which enable the use of current-limiting resistors for interfacing with voltages exceeding the VCC. This component is pin-compatible with Low-power Schottky TTL (LSTTL) and is suitable for applications such as astable and monostable multivibrators.

74HCT132D Quick Information

Product Type: Logic Gate
Series: 74HCT
Canonical Name: NXP Semiconductors 74HCT132D Quad 2-input NAND Schmitt Trigger IC
Subcategory: NAND Gate

74HCT132D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

74HCT132D Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HCT132D Features

  • Quad 2-input NAND Schmitt trigger gates.
  • Operates from 4.5V to 5.5V supply.
  • 33ns maximum propagation delay.
  • Wide -40°C to 125°C operating temperature.
  • Surface mount 14-SO package.

74HCT132D Applications

  • Wave and pulse shaping circuits.
  • Astable multivibrator applications.
  • Monostable multivibrator circuits.
  • TTL logic level interfacing.

74HCT132D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74HCT132D?

4.5V to 5.5V.

What package does the 74HCT132D come in?

14-SO surface-mount package.

What is the operating temperature range of the 74HCT132D?

-40°C to +125°C.

What is the ESD protection level of the 74HCT132D?

Exceeds 2000V HBM and 200V MM.

What are the input logic level thresholds?

Low: 0.5V to 0.6V; High: 1.9V to 2.1V.

What is the propagation delay of the 74HCT132D?

33ns maximum at 4.5V and 50pF load.

What is the quiescent current of the 74HCT132D?

2µA maximum.
