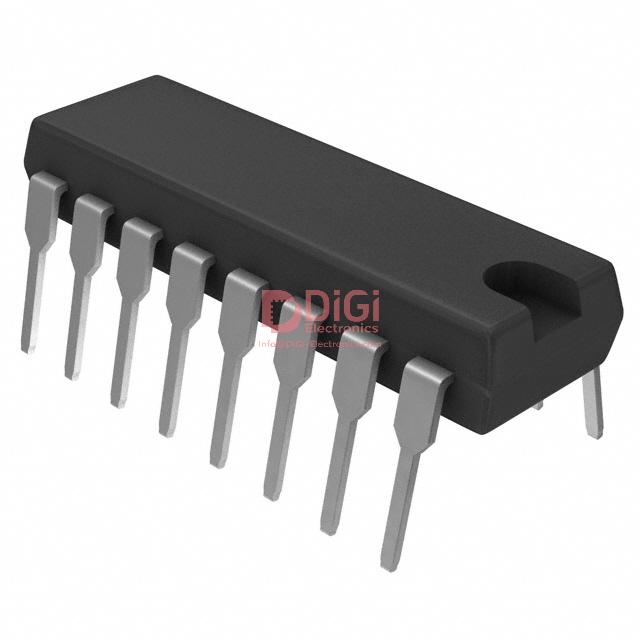

74HCT112 The 74HCT112 is a dual JK type flip flop from NXP Semiconductors. It operates with a supply voltage of 4.5V to 5.5V and features a negative edge trigger.
Mfr Part #:

74HCT112

Available from 1 distributors
Mfr Name: Harris Semiconductor
Harris Semiconductor
The 74HCT112 is a dual JK type flip flop from NXP Semiconductors. It operates with a supply voltage of 4.5V to 5.5V and features a negative edge trigger.
✓ Total Stock: 83 pcs
$ Price Range: $0.86

74HCT112 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request 00G/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HCT112 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Function
Input Capacitance
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Type
Voltage Supply
View Similar Products (0)

74HCT112 Description

Short technical summary and product information.

The 74HCT112 is a dual JK type flip flop manufactured by NXP Semiconductors. This integrated circuit features two elements, each capable of 1-bit operation, triggered on the negative edge.



Key electrical specifications include a maximum clock frequency of 64 MHz and a maximum propagation delay of 35ns at 4.5V with a 50pF load. The device offers complementary outputs and operates within a supply voltage range of 4.5V to 5.5V. Quiescent current (Iq) is a low 4 µA, and input capacitance is 3.5 pF.



Designed for through-hole mounting, the 74HCT112 comes in a 16-DIP package. Its operating temperature range is -40°C to 125°C (TA). This component is suitable for various digital logic applications requiring reliable flip-flop functionality.



This part is also known by the manufacturer part number 74HCT112N,652. The product status is listed as obsolete.

74HCT112 Quick Information

Product Type: Flip Flop
Series: 74HCT
Canonical Name: 74HCT112 JK Type Flip Flop
Subcategory: JK Type

74HCT112 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74HCT112 Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HCT112 Features

  • Dual 1-bit JK type flip flop.
  • Negative edge triggered operation.
  • 64 MHz maximum clock frequency.
  • 35ns maximum propagation delay.
  • Through-hole mounting in 16-DIP package.

74HCT112 Applications

  • Digital logic circuit design.
  • Sequential circuit implementation.
  • Data storage applications.
  • Control system logic.

74HCT112 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.5V to 5.5V.

What package does the 74HCT112 come in?

16-DIP (0.300", 7.62mm) through-hole package.

What is the operating temperature range?

-40°C to 125°C.

What is the maximum clock frequency?

64 MHz.

What is the trigger type?

Negative edge.

How many flip-flops are in the 74HCT112?

Two.

Does the 74HCT112 have preset and reset?

Yes, it has set (preset) and reset inputs.
