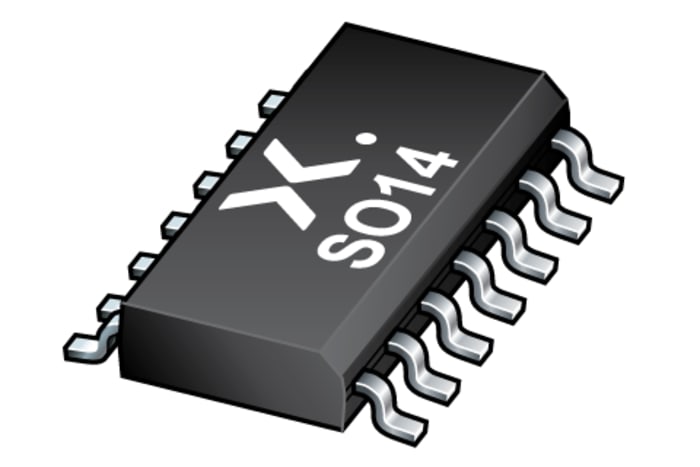

The Nexperia 74HCT08D,653 is a high-performance Quad 2-Input AND Gate designed for digital logic applications. This integrated circuit offers TTL compatible input levels, ensuring seamless integration with existing TTL systems. It operates across a wide supply voltage range, typically from 4.5V to 5.5V, providing flexibility for various design requirements.
The device features four independent 2-input AND gates, each performing the logical AND function. The inputs include clamp diodes, which allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC. This enhances its robustness and application versatility.
With a specified operating temperature range from -40°C to 125°C, the 74HCT08D,653 is suitable for demanding environmental conditions. It is available in a 14-lead SOIC package, designed for surface mounting, making it convenient for automated assembly processes.
Key electrical characteristics include a maximum propagation delay of 23ns and specified output current capabilities. The high noise immunity and latch-up performance exceeding 100 mA per JESD 78 Class II Level B further underscore its reliability in complex electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.0V to 6.0V.
SO14 (plastic small outline package, 14 leads, body width 3.9 mm).
-40°C to 125°C.
AND.
4.
23 ns maximum.
Surface mount.
