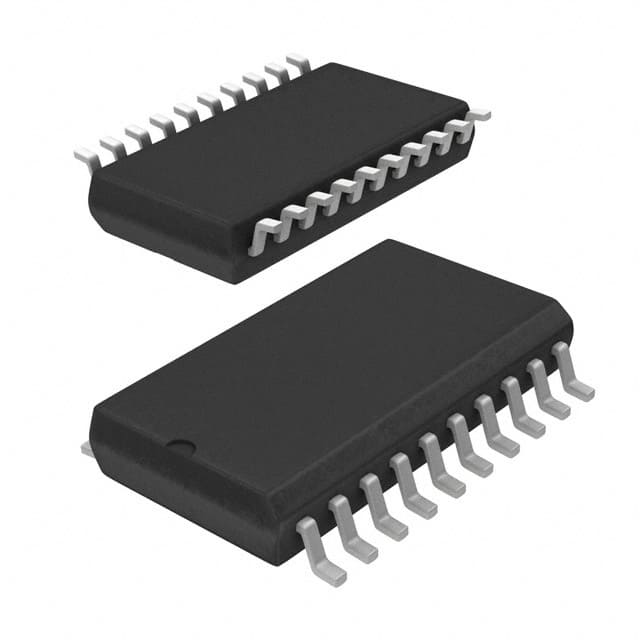

74HC574D The Nexperia USA Inc. 74HC574D-Q100,118 is an 8-bit D-Type flip-flop. It features a positive edge trigger and operates with a supply voltage range of 2V to 6V.
Mfr Part #:

74HC574D

Available from 7 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The Nexperia USA Inc. 74HC574D-Q100,118 is an 8-bit D-Type flip-flop. It features a positive edge trigger and operates with a supply voltage range of 2V to 6V.
✓ Total Stock: 81,066 pcs
$ Price Range: $0.50

74HC574D Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HC574D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Function
Input Capacitance
Mounting Type
Number of Elements
Operating Temperature
Output Type
Storage Temperature
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

74HC574D Description

Short technical summary and product information.

The 74HC574D-Q100,118 from Nexperia USA Inc. is a high-speed CMOS logic device featuring an 8-bit D-type flip-flop. This component is designed for digital applications requiring data storage and synchronization.



Key electrical specifications include a maximum clock frequency of 133 MHz and a maximum propagation delay of 26ns at 6V with a 50pF load. The device operates within a supply voltage range of 2V to 6V and consumes a low quiescent current of 8 µA. Output drive capability is rated at 7.8mA for both high and low states.



This flip-flop utilizes a positive edge trigger mechanism for clocking. It is housed in a 20-SOIC package with a surface mount type, making it suitable for various PCB designs. The operating temperature range is from -40°C to 125°C.



Environmental compliance includes RoHS3 status, REACH unaffected, and Moisture Sensitivity Level 1 (Unlimited). The 74HC574D-Q100,118 is a versatile component for logic and data handling applications.

74HC574D Quick Information

Product Type: Flip Flop
Series: 74HC
Canonical Name: Nexperia USA Inc. 74HC574D-Q100,118 Flip Flop
Subcategory: Logic - Flip Flops

74HC574D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74HC574D Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HC574D Features

  • 8-bit D-Type flip-flop.
  • 133 MHz maximum clock frequency.
  • 2V to 6V operating supply voltage.
  • Surface mountable 20-SOIC package.
  • -40°C to 125°C operating temperature.

74HC574D Applications

  • Used in digital data storage applications
  • Suitable for microcontroller interface circuits
  • Ideal for logic module design
  • Supports high-speed data transfer

74HC574D FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the 74HC574D-Q100,118?

The operating voltage range is 2V to 6V.

What package type is the 74HC574D-Q100,118 supplied in?

It is supplied in a 20-SOIC package.

What is the operating temperature range for this flip-flop?

The operating temperature range is -40°C to 125°C.

What is the RoHS status of the 74HC574D-Q100,118?

The RoHS status is ROHS3 Compliant.
