| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Type | |
| Mounting Type | |
| Operating Temperature | |
| Propagation Delay | |
| Voltage Supply |

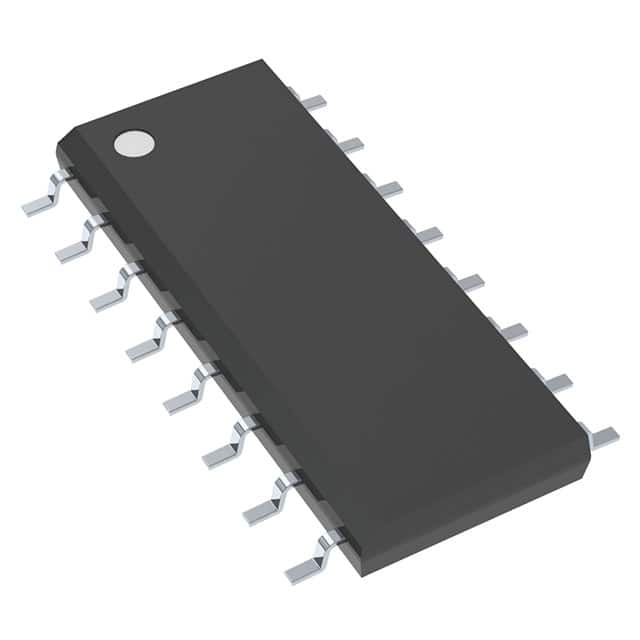

The Texas Instruments CD74HC4538M96 is a versatile monostable multivibrator designed for various timing applications. This integrated circuit operates within a wide supply voltage range of 2V to 6V, making it suitable for diverse electronic systems.
Key electrical characteristics include a fast propagation delay of 21 ns and independent circuits for flexible timing control. The device also features Schmitt trigger inputs, enhancing its noise immunity and reliability in demanding environments. It is designed for surface mount applications and comes in a standard 16-SOIC package.
With an operating temperature range of -55°C to 125°C, the CD74HC4538M96 is built to perform reliably under extreme conditions. Its monostable configuration allows for precise pulse generation, making it a valuable component in timing circuits, oscillators, and frequency dividers.
This component is part of the 74HC series, known for its high speed and low power consumption. The 16-SOIC package is standard for surface-mount designs, facilitating integration into compact PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2 V to 6 V.
The operating temperature range is -55°C to 125°C.
The 74HC4538 is available in a 16-SOIC surface-mount package (0.154", 3.90mm Width).
Yes, the 74HC4538 has Schmitt trigger inputs.
The propagation delay is 21 ns.
