74HC374D The Toshiba 74HC374D is an octal D-type flip-flop with 3-state outputs. It operates at a clock frequency of up to 90 MHz and a voltage range of 2V to 6V.
Mfr Part #:

74HC374D

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba 74HC374D is an octal D-type flip-flop with 3-state outputs. It operates at a clock frequency of up to 90 MHz and a voltage range of 2V to 6V.
✓ Total Stock: 1 pcs
$ Price Range: $1.23

74HC374D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HC374D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Clock Frequency
Current
Function
Industrial Grade
Input Capacitance
Max Propagation Delay @ V, Max CL
Medical Grade
Military Grade
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Trigger Type
Type
Voltage
View Similar Products (0)

74HC374D Description

Short technical summary and product information.

The Toshiba 74HC374D is an 8-bit D-type flip-flop featuring 3-state outputs, fabricated with silicon gate C2MOS technology. This component achieves high-speed operation while maintaining low power dissipation.



Key electrical specifications include a maximum clock frequency of 90 MHz at 6.0 V, a wide operating voltage range from 2.0 V to 6.0 V, and a low quiescent current of 4.0 µA at 25°C. Propagation delays are balanced, with tPLH approximately equal to tPHL. The device has a maximum propagation delay of 32ns at 6V with a 150pF load.

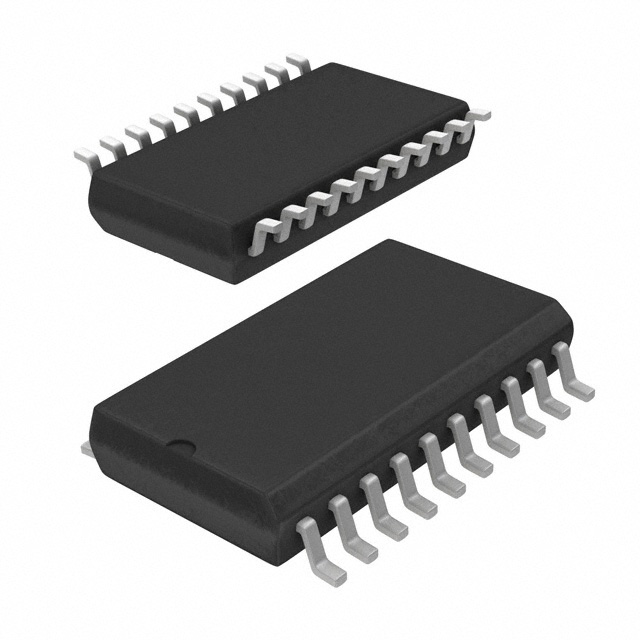

This flip-flop is designed for surface mount applications and comes in a 20-SOIC package. It is suitable for digital logic circuits requiring high-speed data storage and buffering. The inputs are protected against static discharge and transient excess voltage.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The operating temperature range is -40°C to 125°C (TA).

74HC374D Quick Information

Product Type: Flip Flop
Series: 74HC
Canonical Name: Toshiba 74HC374D Octal D-Type Flip Flop
Subcategory: D-Type Flip Flop

74HC374D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74HC374D Estimated Pricing

Qty Low High
1+ $1.23 $1.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HC374D Features

  • Octal D-Type flip-flop with 3-state outputs.
  • High speed operation up to 90 MHz.
  • Wide 2V to 6V operating voltage range.
  • Low 4 µA quiescent current.
  • Surface mount 20-SOIC package.

74HC374D Applications

  • Data storage in register applications.
  • Buffer registers for bus systems.
  • High-speed data latching circuits.
  • General-purpose logic and control systems.

74HC374D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74HC374D?

2V to 6V.

What is the package type of the 74HC374D?

20-SOIC (surface mount).

What is the operating temperature range?

-40°C to 125°C.

What is the maximum clock frequency?

90 MHz.

What is the output type?

Tri-State, Non-Inverted.

What is the trigger type?

Positive Edge.

What is the propagation delay?

32 ns at 6V with 150 pF load.
