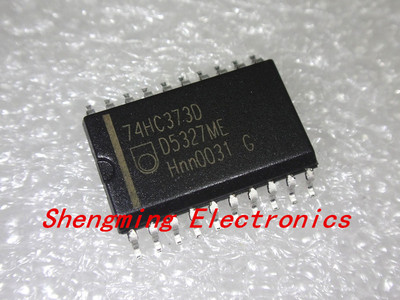

74HC373D The 74HC373D from NXP Semiconductors is an octal D-type latch with 3-state outputs. It operates over a wide voltage range and features high-speed CMOS technology.
Mfr Part #:

74HC373D

Available from 7 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The 74HC373D from NXP Semiconductors is an octal D-type latch with 3-state outputs. It operates over a wide voltage range and features high-speed CMOS technology.
✓ Total Stock: 4,176 pcs
$ Price Range: $1.22

74HC373D Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HC373D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Current
Delay Time
Independent Circuits
Lead Style
Logic Type
Mounting Type
Operating Temperature
Output Type
Quiescent Current
Supplier Device Package
Voltage
View Similar Products (0)

74HC373D Description

Short technical summary and product information.

The 74HC373D is an octal D-type transparent latch with 3-state outputs, manufactured by NXP Semiconductors. It is part of the HC/UH series and designed for high-speed operation while maintaining low power dissipation, characteristic of CMOS technology.



This latch features a wide operating voltage range from 2.0 V to 6.0 V. It offers balanced propagation delays and operates efficiently across a temperature range of -40°C to 125°C. The device includes protection circuits against static discharge and transient excess voltage.



Packaged in a 20-SOIC format, the 74HC373D is suitable for surface mount applications. Its 3-state outputs are controlled by latch enable (LE) and output enable (OE) inputs, allowing for flexible system integration. The circuit configuration is 1:8 with a single independent circuit.



Key electrical characteristics include a typical propagation delay of 12 ns at 6.0 V and a maximum quiescent current of 4.0 µA at 25°C. The output current is rated at 7.8 mA for both high and low states.

74HC373D Quick Information

Product Type: Latch
Series: HC
Canonical Name: 74HC373D Octal D-Type Latch with 3-State Outputs
Subcategory: Latch

74HC373D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74HC373D Estimated Pricing

Qty Low High
1+ $1.22 $1.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HC373D Features

  • Octal D-type latch with 3-state outputs.
  • Wide 2.0 V to 6.0 V operating voltage range.
  • High speed CMOS technology for efficient operation.
  • Surface mount 20-SOIC package.
  • Operates from -40°C to 125°C.

74HC373D Applications

  • Data buffering in digital systems.
  • Memory and register applications.
  • Bus interface logic.
  • Control signal management.

74HC373D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74HC373D?

2.0V to 6.0V.

What package does the 74HC373D come in?

20-SOIC (0.295", 7.50mm Width) surface-mount package.

What is the operating temperature range of the 74HC373D?

-40°C to 125°C.

What is the propagation delay of the 74HC373D?

Typical 12ns at VCC=6.0V per datasheet; an alternative typical value of 30ns is also listed.

What is the quiescent current of the 74HC373D?

Maximum 4.0µA at 25°C.

What type of logic device is the 74HC373D?

D-Type Transparent Latch.

What is the output type of the 74HC373D?

Tri-State.
