| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | 8729G/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Current | |
| Propagation Delay | |
| Quiescent Current | |
| SVHC Present | |
| Supply Voltage |

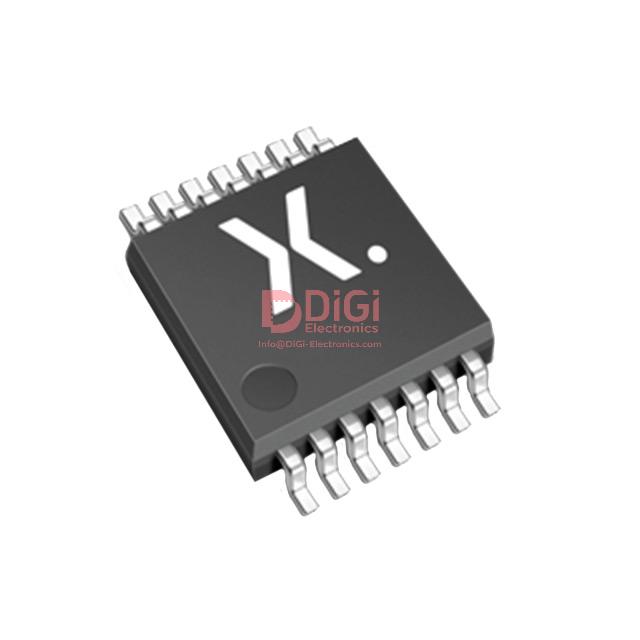

The Nexperia 74HC27PW-Q100J is an integrated circuit belonging to the 74HC series, functioning as a NOR Gate. This component features 3 independent NOR gates, each with 3 inputs, making it suitable for various digital logic operations.
Designed for reliability, the 74HC27PW-Q100J operates across a wide supply voltage range of 2V to 6V, with specific input logic level thresholds defined for low (0.5V to 1.8V) and high (1.5V to 4.2V) states. Its quiescent current is a low 2 µA, and it can source/sink output currents of 5.2mA. The maximum propagation delay is 15ns at 6V with a 50pF load.
This IC is specified for operation in harsh environments, with an operating temperature range of -40°C to 125°C. It holds an Automotive qualification (AEC-Q100), indicating its suitability for automotive applications. The component is supplied in a 14-TSSOP surface-mount package, typically delivered on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 74HC27 is a triple 3-input NOR gate.
2V to 6V.
-40°C to 125°C.
14-TSSOP surface mount package.
Yes, it is AEC-Q100 qualified.
15 ns at 6V with 50 pF load.
2 µA.
