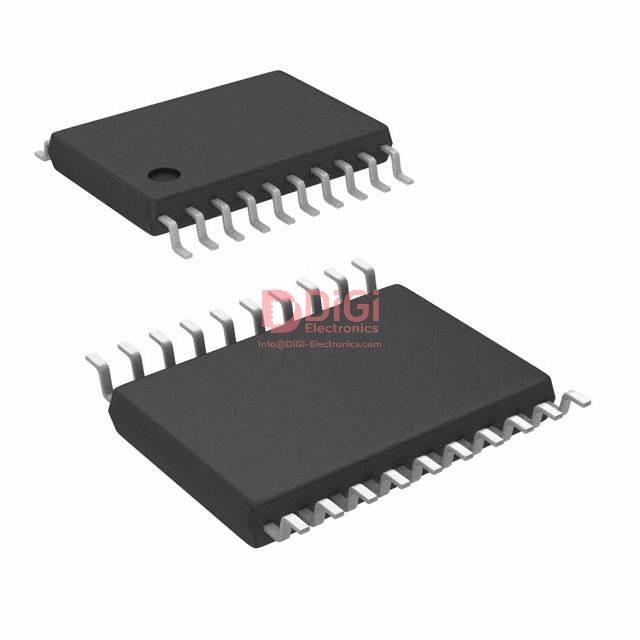

74HC244 The NXP Semiconductors 74HC244PW/AUJ is a non-inverting buffer IC. It features 2 elements, 4 bits per element, and operates within a 2V to 6V supply range.
Mfr Part #:

74HC244

Available from 1 distributors
Mfr Name: Harris Semiconductor
Harris Semiconductor
The NXP Semiconductors 74HC244PW/AUJ is a non-inverting buffer IC. It features 2 elements, 4 bits per element, and operates within a 2V to 6V supply range.
✓ Total Stock: 1,520 pcs
$ Price Range: $1.20

74HC244 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
1,520 pcs
On Request
1520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74HC244 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Logic Type
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Voltage
View Similar Products (0)

74HC244 Description

Short technical summary and product information.

The 74HC244PW/AUJ from NXP Semiconductors is a high-speed CMOS logic buffer. It is designed with 2 elements, each containing 4 bits, providing non-inverting signal buffering.



This component operates with a supply voltage ranging from 2V to 6V and functions across an industrial temperature range of -40°C to 125°C. The output current capability is 7.8mA for both high and low states. The buffer features a 3-state output, allowing for bus-compatible operations.



Packaged in a 20-TSSOP (Thin Shrink Small Outline Package), the 74HC244PW/AUJ is designed for surface mounting. Its robust specifications make it suitable for various digital logic applications requiring signal buffering and level shifting.

74HC244 Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 74HC
Canonical Name: NXP Semiconductors 74HC244PW/AUJ Buffer, Non-Inverting
Subcategory: Buffers, Drivers, Receivers, Transceivers

74HC244 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74HC244 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

74HC244 Features

  • Dual 4-bit non-inverting buffer.
  • 3-state output capability.
  • Wide 2V to 6V operating voltage.
  • Extended -40°C to 125°C temperature range.
  • Surface mount 20-TSSOP package.

74HC244 Applications

  • Digital signal buffering.
  • Logic level translation.
  • Bus line driving.
  • System control signal routing.

74HC244 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74HC244?

The 74HC244 operates from 2V to 6V.

What is the operating temperature range of the 74HC244?

The 74HC244 operates from -40°C to 125°C.

What package is the 74HC244 available in?

The 74HC244 is available in a 20-TSSOP surface-mount package.

What is the logic type of the 74HC244?

The 74HC244 is a buffer with non-inverting outputs.

How many elements and bits per element does the 74HC244 have?

The 74HC244 has 2 elements, each with 4 bits.

What is the output type of the 74HC244?

The 74HC244 has 3-state outputs.
