| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | 9718 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Lead Spacing | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| SVHC Present | |
| Storage Temperature | |
| Supply Current |

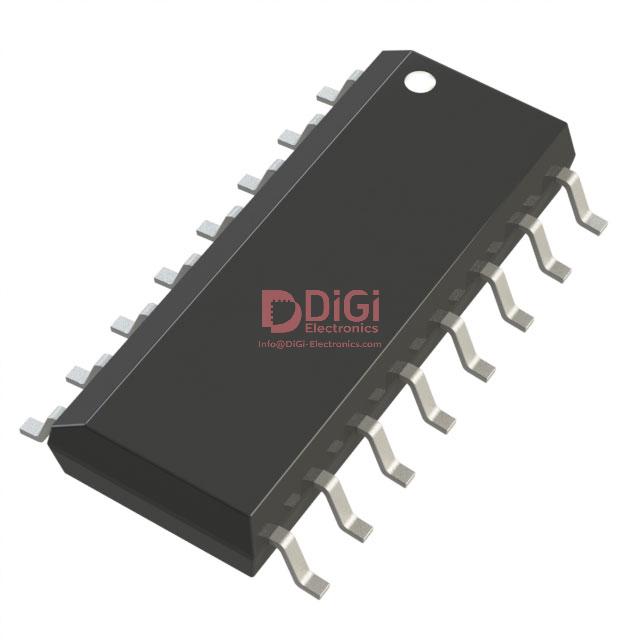

The 74HC165D is a high-speed CMOS 8-bit parallel-in, serial-out shift register manufactured by Harris Semiconductor. It utilizes silicon gate C2MOS technology to achieve high-speed operation while maintaining low power dissipation.
This shift register operates over a wide voltage range of 2.0V to 6.0V and supports a maximum clock frequency of 56 MHz at 5V. It features a low supply current of 4.0 µA maximum at 25°C. The device is designed for a wide operating temperature range from -40°C to 125°C.
Packaged in a 16-SOIC surface-mount configuration, the 74HC165D is suitable for various digital logic applications requiring efficient data shifting and serial output. Its design includes protection circuits against static discharge and transient excess voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.0V to 6.0V.
56 MHz typical at 5V.
-40°C to 125°C.
16-SOIC surface mount package.
Maximum 4.0 µA at 25°C.
Shift register.
8 bits.
