| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68,520 pcs
|
68520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Logic Level | |
| Logic Type | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |

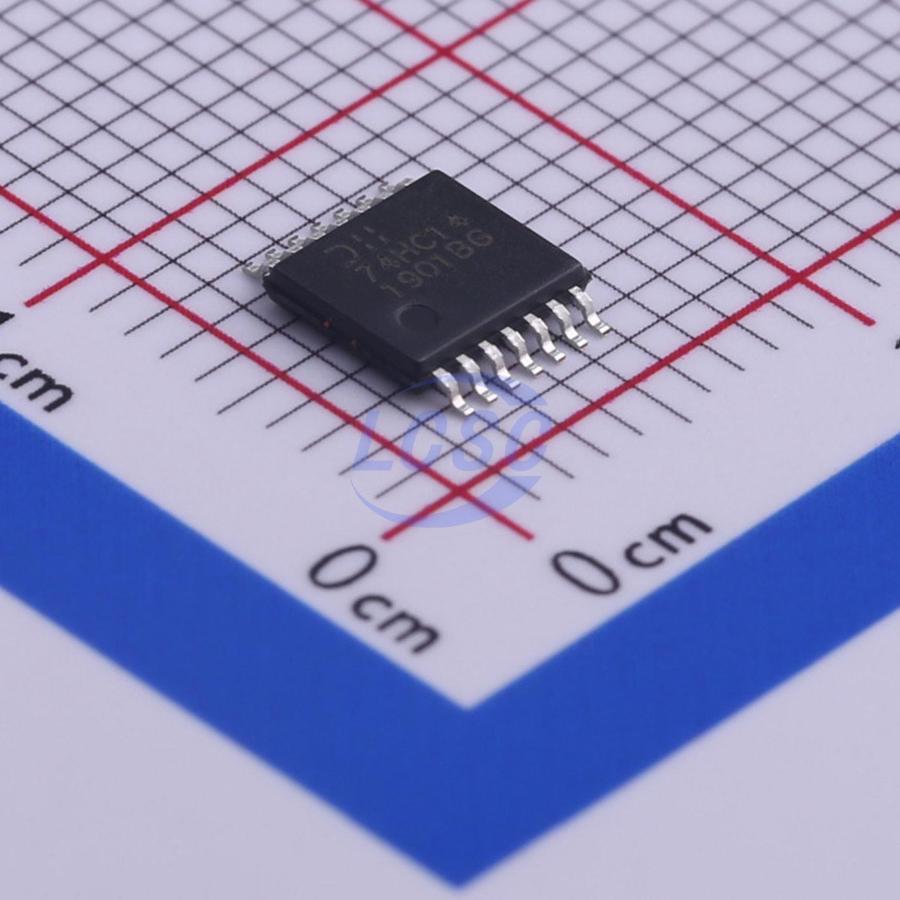

The 74HC14T14-13 is a hex inverter integrated circuit from Diodes Incorporated, designed for general-purpose logic inversion in digital systems. It features six independent inverter gates in a single 14-pin TSSOP package.
Operating from a supply voltage range of 2V to 6V, the device draws a quiescent current of 5.2mA. The input logic levels are from 1.5V to 4.2V, ensuring compatibility with standard CMOS logic families. The maximum propagation delay is 21ns at 6V and 50pF load capacitance.
The device is rated for an operating temperature range of -40°C to 125°C, making it suitable for industrial and automotive environments. The surface mount TSSOP package supports compact PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2V to 6V.
The operating temperature range is -40°C to 125°C.
It contains 6 inverter gates.
Maximum propagation delay is 21ns at 6V and 50pF load.
