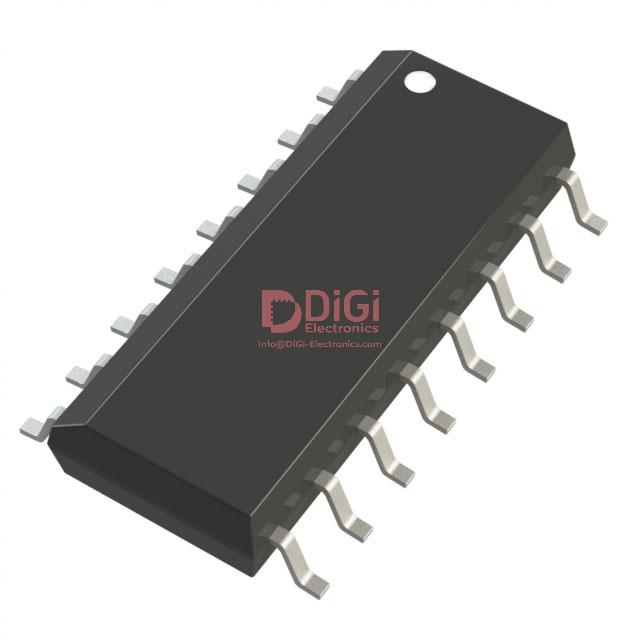

The 74HC138D is a high-speed CMOS 3-to-8 line decoder manufactured by Nexperia USA Inc. This integrated circuit utilizes silicon gate C2MOS technology to achieve high-speed operation while maintaining low power dissipation, similar to LSTTL devices. When enabled, the three binary select inputs (A, B, and C) determine which of the eight outputs (Y0-Y7) will go low. The device features a wide operating voltage range from 2.0V to 6.0V and can operate in temperatures from -40°C to 125°C.
Designed for applications requiring address decoding or cascading, the 74HC138D includes enable inputs (G1, G2A, G2B) that facilitate connection to memory systems or other logic circuits. All inputs are protected against static discharge and transient overvoltage. The decoder is available in a 16-SOIC surface-mount package, making it suitable for various electronic designs.
Key electrical characteristics include a typical propagation delay of 16 ns at 5V and a low supply current of 4.0 µA maximum at 25°C. The output current capability is 5.2mA for both high and low states.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.0V to 6.0V.
16-SOIC (0.154", 3.90mm Width).
-40°C to 125°C.
16ns at VCC=5V.
4.0µA at 25°C.
5.2mA for both high and low outputs.
Surface Mount.
