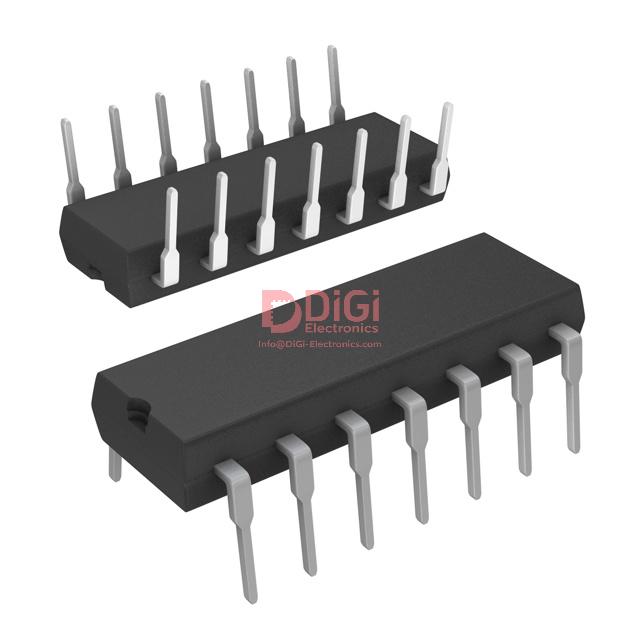

This 74HC02N integrated circuit from NXP Semiconductors is a NOR Gate IC designed for logic applications. It features 4 independent NOR gates, each with 2 inputs. The device operates over a wide supply voltage range of 2V to 6V, making it versatile for various electronic designs.
Key electrical characteristics include a low quiescent current of 2 µA and output currents of 5.2mA for both high and low states. The input logic levels are defined between 0.5V to 1.8V for low and 1.5V to 4.2V for high. Propagation delay is specified at 15ns at 6V with a 50pF load capacitance.
The 74HC02N is housed in a standard 14-DIP through-hole package, suitable for traditional PCB mounting. It operates reliably across a broad temperature range of -40°C to 125°C. This component belongs to the 74HC series and is classified as obsolete.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The logic type is NOR Gate.
There are 4 circuits.
The supply voltage range is 2V to 6V.
The operating temperature range is -40°C to 125°C.
It is in a 14-DIP package.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
