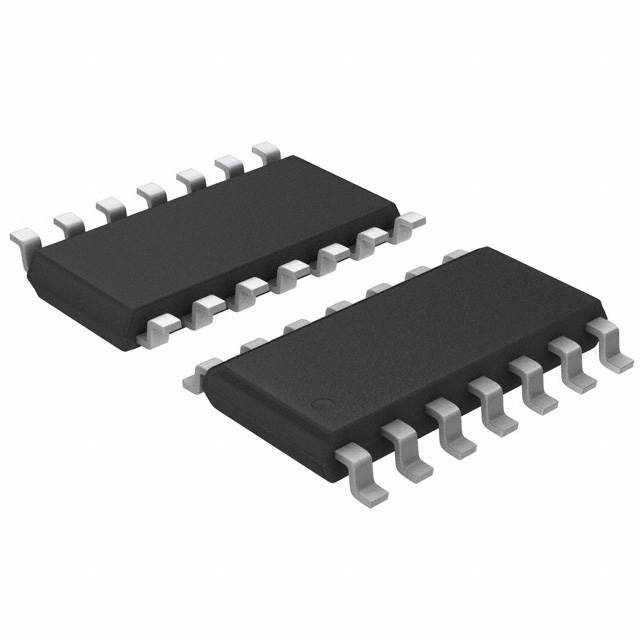

The 74HC02D from Philips is a high-speed CMOS logic integrated circuit featuring four independent 2-input NOR gates. This device is designed for a wide operating voltage range from 2V to 6V, making it versatile for various applications. It offers a typical propagation delay of 6ns at 50pF, ensuring efficient signal processing.
The 74HC02D comes in a 14-SOIC surface-mount package with gull-wing leads, suitable for automated assembly processes. The operating temperature range is from -40°C to 85°C, allowing for use in demanding environments. With a maximum quiescent current of 1µA, it is also power-efficient.
This logic IC is ideal for digital logic applications requiring NOR gate functionality. Its robust design and standard packaging make it a reliable choice for circuit designers. The device supports input logic levels from 0.5V to 1.8V for low and 1.5V to 4.2V for high, with output currents of 5.2mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 74HC02D performs a NOR logic function.
The 74HC02D operates with a supply voltage range of 2V to 6V.
The 74HC02D operates in a temperature range of -40°C to 85°C.
The 74HC02D is supplied in a 14-SOIC package.
The 74HC02D contains 4 gates.
The propagation delay is 6ns at 50pF.
