| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,516 pcs
|
5516 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Logic Level | |
| Logic Type | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Current | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Toshiba 74HC02D is a high-speed CMOS digital integrated circuit featuring four independent 2-input NOR gates. Fabricated using silicon gate C2MOS technology, it offers high-speed operation comparable to LSTTL while maintaining low CMOS power dissipation.
This device is designed for a wide operating voltage range of 2.0V to 6.0V. It operates across a broad temperature spectrum, typically from -40°C to 85°C, making it suitable for various environmental conditions. The internal circuit includes buffer outputs for high noise immunity and stable output characteristics. All inputs are protected against static discharge and transient overvoltage.

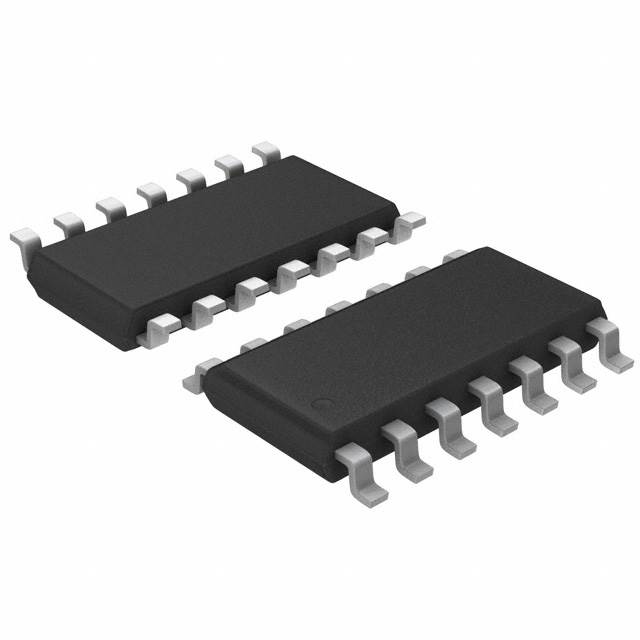

The 74HC02D is supplied in a 14-SOIC package, designed for surface mounting. Its balanced propagation delays and low power consumption make it a versatile component for digital logic applications requiring reliable NOR gate functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the 74HC02D is 2V to 6V.
The 74HC02D is a NOR Gate.
The 74HC02D contains 4 independent circuits.
The 74HC02D is available in a 14-SOIC package.
The operating temperature range is -40°C to 85°C.
