| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
516,571 pcs
|
516571 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Hysteresis | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel |
The 74AUP1G07SE-7 from Diodes Incorporated is a single buffer/driver featuring an open drain output. This Advanced Ultra Low Power (AUP) CMOS logic device is designed for battery-powered and low-power applications, supporting a supply voltage range from 0.8V to 3.6V.
Key electrical characteristics include a 4 mA output drive at 3.0V, low static power consumption (ICC < 0.9µA), and low dynamic power consumption (CPD = 6pF typical). The device incorporates Schmitt trigger action at its inputs, providing tolerance for slower input rise and fall times with typical hysteresis of 250 mV at 3.0V. It also supports partial power-down mode operation via its I OFF circuitry.

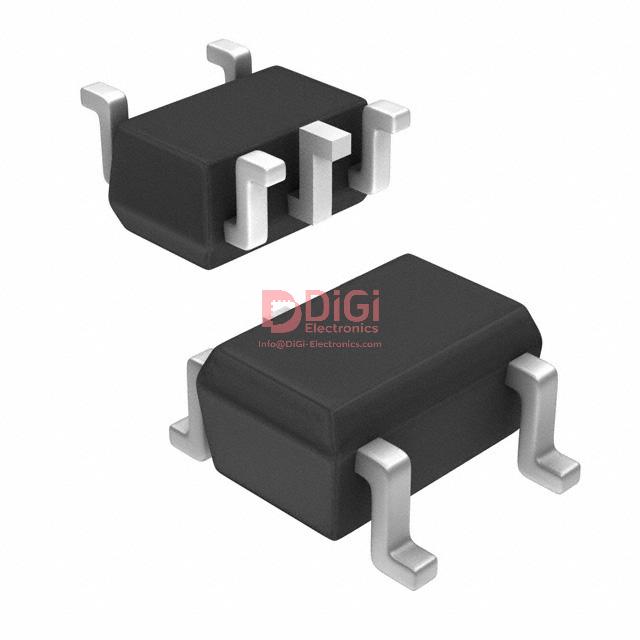

This buffer/driver is available in a SOT-353 surface mount package and is supplied on tape and reel. It is suitable for a wide array of portable electronic products such as tablets, smartphones, MP3 players, and portable gaming devices.
Environmental compliance includes RoHS3 compliance and it is also Halogen and Antimony free. The device is specified for operation over an extended temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 0.8V to 3.6V.
The output drive current is 4 mA at 3.0V.
The operating temperature range is -40°C to 125°C.
The 74AUP1G07SE-7 has an open drain output.
Yes, the 74AUP1G07SE-7 features Schmitt trigger action at all inputs.
