| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
354,992 pcs
|
354992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
7,020 pcs
|
7020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Logic Level | |
| Logic Type | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The 74AHC1G86SE-7 from Diodes Incorporated is a single, 2-input positive exclusive-OR gate featuring a standard push-pull output. This device is designed for operation within a wide power supply range of 2.0V to 5.5V.
Key electrical characteristics include an output drive capability of ±8 mA at 5.0V and a maximum propagation delay of 8.8ns at 5V with a 50pF load. The inputs offer Schmitt Trigger action, which makes the circuit tolerant to slower input rise and fall times. The operating temperature range for this gate is from -40°C to 125°C.

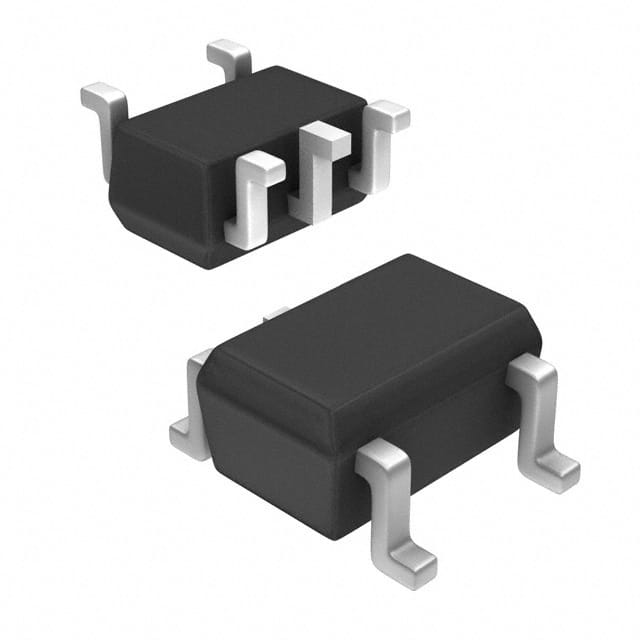

This logic gate is housed in a compact SOT-353 surface-mount package, making it suitable for space-constrained applications. It is also available in tape and reel packaging for automated assembly processes.
Applications for the 74AHC1G86SE-7 include general-purpose logic functions in a wide array of electronic products such as PCs, networking equipment, consumer electronics, and portable devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2V to 5.5V.
SOT-353 (also 5-TSSOP, SC-70-5).
-40°C to 125°C.
Yes, it has a lead-free finish.
XOR (Exclusive OR).
2 inputs.
8.8ns max at 5V, 50pF.
