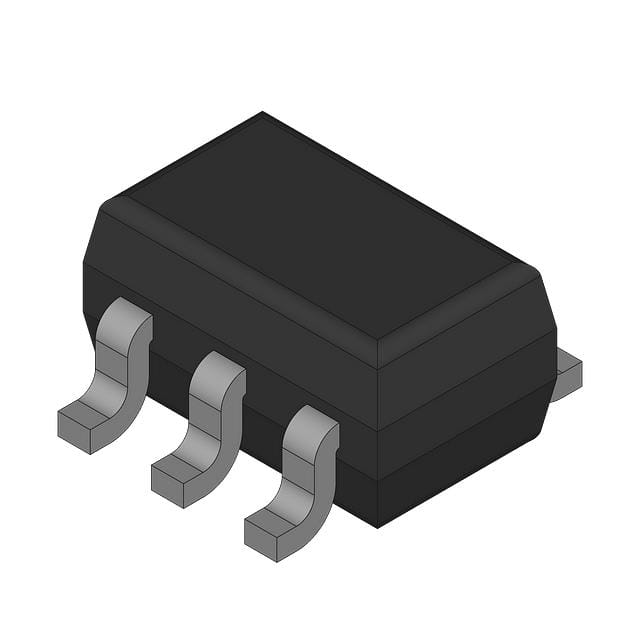

74AHC1G00GW,125 The NXP Semiconductors 74AHC1G00GW,125 is a single 2-input NAND gate. It features a wide supply voltage range and overvoltage tolerant inputs.
Mfr Part #:

74AHC1G00GW,125

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors 74AHC1G00GW,125 is a single 2-input NAND gate. It features a wide supply voltage range and overvoltage tolerant inputs.
✓ Total Stock: 5,018 pcs
$ Price Range: $0.22

74AHC1G00GW,125 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,509 pcs
On Request
2509 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
2,509 pcs
On Request
2509 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74AHC1G00GW,125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Latch-up Performance
Lead Style
Mounting Type
View Similar Products (0)

74AHC1G00GW,125 Description

Short technical summary and product information.

The 74AHC1G00GW,125 from NXP Semiconductors is a single 2-input NAND gate designed for digital logic applications. It operates across a wide supply voltage range from 2.0 V to 5.5 V, making it suitable for various mixed-voltage environments due to its overvoltage tolerant inputs up to 5.5 V.



This device offers high noise immunity and low power dissipation characteristic of CMOS technology. It is specified for operation in an extended temperature range from -40 °C to +125 °C. The NAND gate provides a high output impedance and balanced propagation delays, ensuring reliable performance.



Available in a compact TSSOP5 package, the 74AHC1G00GW,125 is designed for surface mounting. Its ESD protection exceeds 2000 V for HBM and 1000 V for CDM, providing robust protection against electrostatic discharge. Latch-up performance also exceeds 100 mA per JESD 78 Class II Level A.

74AHC1G00GW,125 Quick Information

Product Type: NAND Gate
Series: 74AHC
Canonical Name: 74AHC1G00GW,125 Single 2-Input NAND Gate
Subcategory: NAND Gate

74AHC1G00GW,125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74AHC1G00GW,125 Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

74AHC1G00GW,125 Features

  • Single 2-input NAND gate.
  • Wide supply voltage range: 2.0 V to 5.5 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • Specified from -40 °C to +125 °C.
  • TSSOP5 surface mount package.

74AHC1G00GW,125 Applications

  • Ideal for general purpose logic gating applications.
  • Suitable for battery-powered portable devices.
  • Used in industrial control and automation systems.
  • Can be used in automotive electronics.
  • Applicable in signal conditioning circuits.

74AHC1G00GW,125 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74AHC1G00GW,125?

The supply voltage range is 2.0V to 5.5V.

What is the operating temperature range?

-40°C to +125°C.

What package is the 74AHC1G00GW,125 available in?

TSSOP5 (5-lead Thin Shrink Small Outline Package) with 1.25mm body width.

What is the ESD protection level?

HBM 2000V (class 2) and CDM 1000V (class C3).

Does the device have overvoltage tolerant inputs?

Yes, inputs are tolerant up to 5.5V.

What is the latch-up performance?

Latch-up performance exceeds 100mA per JESD 78 Class II Level A.
