| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,267 pcs
|
60267 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Current | |
| Delay Time | |
| Independent Circuits | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Supply |

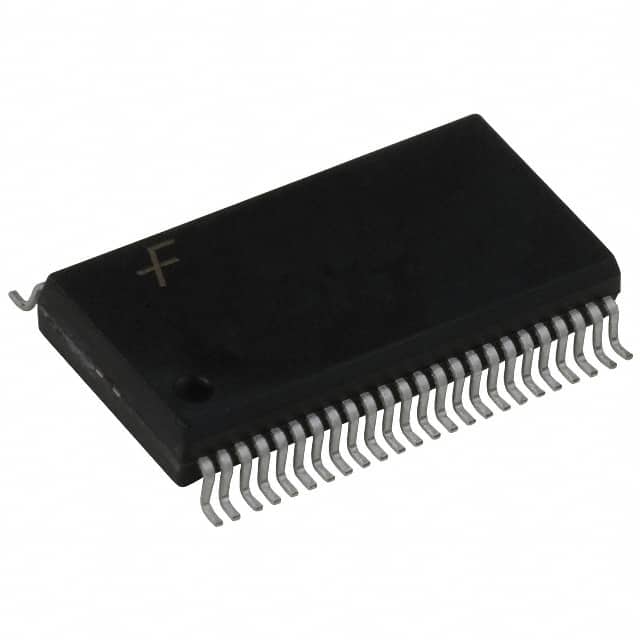

The 74ACTQ16373SSCX from On Semiconductor is a 16-bit transparent latch designed for bus-oriented applications. It features 3-state outputs and is byte-controlled, with each byte functioning independently. The device operates over a voltage range of 4.5V to 5.5V and has an output current capability of 24mA for both high and low states. The latch has a propagation delay of 5.3ns.
This component is housed in a 48-SSOP package, suitable for surface mount applications. The operating temperature range is -40°C to 85°C. The 74ACTQ16373SSCX is designed with Fairchild's FACT Quiet Series technology, ensuring quiet output switching and improved dynamic threshold performance.
Key electrical characteristics include a D-type transparent latch logic type, with 2 independent circuits, each handling 8 bits. The outputs are Tri-State, providing flexibility in bus interfacing. This latch is ideal for applications requiring data storage and buffering in digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
The output can source or sink 24mA.
The typical propagation delay is 5.3ns.
It is available in a 48-SSOP package (48-BSSOP, 0.295" width, 7.50mm pitch).
The operating temperature range is -40°C to +85°C.
It is a D-Type Transparent Latch.
There are two independent 8-bit latch circuits.
