74ACT74MTCX
On Semiconductor
The On Semiconductor 74ACT74MTCX is a dual D-type flip flop. It features a 210 MHz clock frequency and operates at 4.5V to 5.5V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361,600 pcs
|
361600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Current | |
| Function | |
| Input Capacitance | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Trigger Type | |
| Type | |
| Voltage |
The 74ACT74MTC from ON Semiconductor is a dual, 1-bit D-type flip-flop integrated circuit. It is designed for digital logic applications and operates with a supply voltage range of 4.5V to 5.5V.
This device features a high clock frequency of 210 MHz and a maximum propagation delay of 11ns at 5V and 50pF. It includes positive edge triggering and complementary outputs. The flip-flop has a low quiescent current of 20 µA and an input capacitance of 4.5 pF.

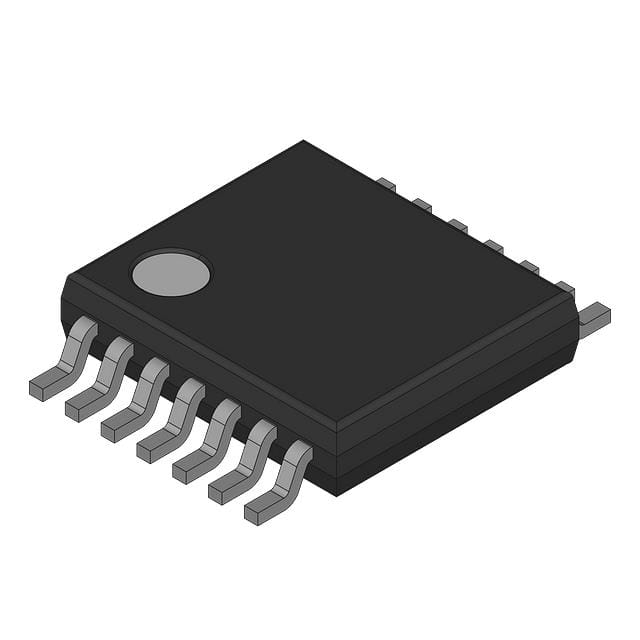

Packaged in a 14-TSSOP (0.173", 4.40mm Width) surface-mount configuration, the 74ACT74MTC is suitable for various electronic designs. It operates within a temperature range of -40°C to 85°C (TA). The component is specified as RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 5.5V.
The maximum clock frequency is 210 MHz.
The operating temperature range is -40°C to +85°C.
The 74ACT74MTC is available in a 14-TSSOP surface-mount package.
The maximum propagation delay is 11 ns at 5V and 50 pF load.
Yes, the outputs are complementary (Q and Q̅).
