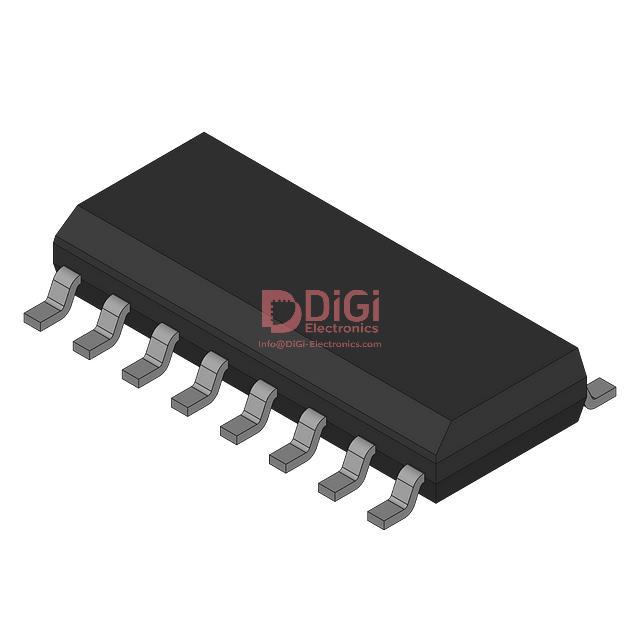

74ACT109SCX The Fairchild Semiconductor 74ACT109SCX is a dual JK positive edge-triggered flip-flop. It features a clock frequency of 210 MHz and operates within a voltage range of 4.5V to 5.5V.
Mfr Part #:

74ACT109SCX

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Fairchild Semiconductor 74ACT109SCX is a dual JK positive edge-triggered flip-flop. It features a clock frequency of 210 MHz and operates within a voltage range of 4.5V to 5.5V.
✓ Total Stock: 406 pcs
$ Price Range: $0.86

74ACT109SCX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
406 pcs
On Request
406 pcs On Request 1 On Request On Request 9436P/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74ACT109SCX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Failure Rate
Function
Input Capacitance
Lead Spacing
Lead Style
Mounting Type
Number of Elements
Operating Temperature
Output Current
Output Type
Propagation Delay
Quiescent Current
SVHC Present
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

74ACT109SCX Description

Short technical summary and product information.

The Fairchild Semiconductor 74ACT109SCX is a dual JK positive edge-triggered flip-flop IC. It consists of two independent JK flip-flops that are clocked on the positive edge of the clock signal. This device offers a high clock frequency of 210 MHz and a maximum propagation delay of 11ns at 5V and 50pF.



Designed for versatility, the 74ACT109SCX supports Set (Preset) and Reset functions, with complementary outputs. It operates within a supply voltage range of 4.5V to 5.5V and consumes a quiescent current of 20 µA. The flip-flop is housed in a 16-SOIC package, suitable for surface mount applications.



Key electrical characteristics include output sourcing and sinking capabilities of 24mA. The ACT109 variant also features TTL-compatible inputs. This component is ideal for digital logic applications requiring reliable flip-flop functionality.

74ACT109SCX Quick Information

Product Type: Flip Flop
Series: 74ACT
Canonical Name: Fairchild Semiconductor 74ACT109SCX Dual JK Positive Edge-Triggered Flip-Flop
Subcategory: Logic

74ACT109SCX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74ACT109SCX Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

74ACT109SCX Features

  • Dual JK positive edge-triggered flip-flop.
  • 210 MHz maximum clock frequency.
  • 11ns maximum propagation delay.
  • 4.5V to 5.5V operating voltage.
  • Surface mount 16-SOIC package.

74ACT109SCX Applications

  • Digital logic circuit design.
  • State machine implementation.
  • Data synchronization tasks.
  • Frequency division circuits.

74ACT109SCX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the 74ACT109SCX?

The operating voltage range is 4.5V to 5.5V.

What is the operating temperature range of the 74ACT109SCX?

The operating temperature range is -40°C to 85°C.

What is the package type for the 74ACT109SCX?

The package type is 16-SOIC (0.154", 3.90mm Width).

What is the maximum clock frequency of the 74ACT109SCX?

The maximum clock frequency is 210 MHz.

What is the trigger type of the 74ACT109SCX?

The trigger type is positive edge.

Does the 74ACT109SCX have complementary outputs?

Yes, the output type is complementary.
