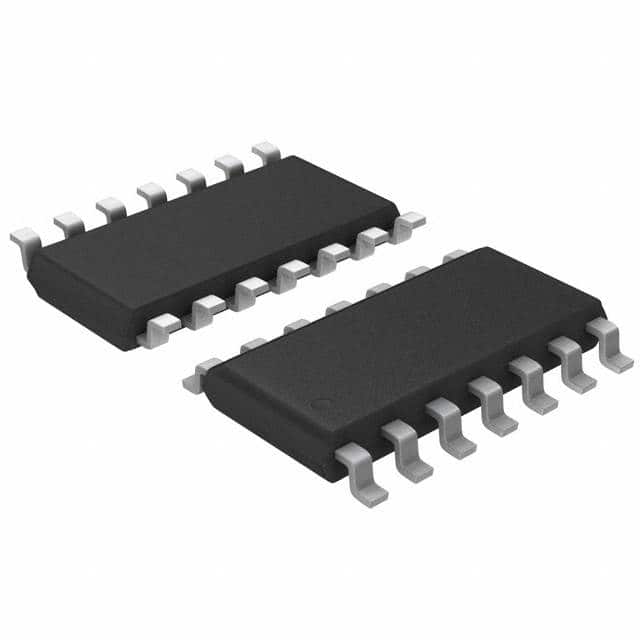

74AC74MTR The STMicroelectronics 74AC74MTR is a D-Type flip flop with a 300 MHz clock frequency. It operates with a supply voltage range of 2V to 6V and is available in a surface mount package.
Mfr Part #:

74AC74MTR

Available from 1 distributors
Mfr Name: ST
ST
The STMicroelectronics 74AC74MTR is a D-Type flip flop with a 300 MHz clock frequency. It operates with a supply voltage range of 2V to 6V and is available in a surface mount package.
✓ Total Stock: 200,000 pcs
$ Price Range: $0.86

74AC74MTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74AC74MTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Input Capacitance
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

74AC74MTR Description

Short technical summary and product information.

The STMicroelectronics 74AC74MTR is a dual D-type flip-flop IC belonging to the 74AC series. It features positive edge triggering and provides complementary outputs. This component is designed for operation with a supply voltage ranging from 2V to 6V and boasts a maximum clock frequency of 300 MHz.



The propagation delay is specified as 10ns at 5V and 50pF. The device has a low quiescent current of 2 µA and an input capacitance of 3 pF. Output current capability is 24mA for both high and low states.



This flip-flop is housed in a 14-SOIC surface mount package. The operating temperature range is -55°C to 125°C. The product status is listed as obsolete.



Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited) moisture sensitivity, and REACH unaffected status.

74AC74MTR Quick Information

Product Type: Flip Flop
Series: 74AC
Canonical Name: STMicroelectronics 74AC74MTR D-Type Flip Flop
Subcategory: Logic

74AC74MTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

74AC74MTR Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

74AC74MTR Features

  • Dual D-Type flip flop with positive edge trigger.
  • Operates from 2V to 6V supply voltage.
  • Maximum clock frequency of 300 MHz.
  • 10ns maximum propagation delay at 5V.
  • Surface mount 14-SOIC package.

74AC74MTR Applications

  • Digital logic circuits.
  • Data synchronization.
  • State machine implementation.
  • Buffer applications.

74AC74MTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the 74AC74MTR?

The supply voltage range is 2V to 6V.

What package does the 74AC74MTR come in?

The 74AC74MTR is available in a 14-SOIC (0.154", 3.90mm Width) surface-mount package.

What is the operating temperature range of the 74AC74MTR?

The operating temperature range is -55°C to 125°C.

What is the maximum clock frequency of the 74AC74MTR?

The maximum clock frequency is 300 MHz.

What is the propagation delay of the 74AC74MTR?

The maximum propagation delay is 10ns at 5V supply and 50pF load.

What is the output current capability of the 74AC74MTR?

The output current is 24mA for both high and low states.
