| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | 18+22+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Body Height | |
| Body Length | |
| Body Width | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

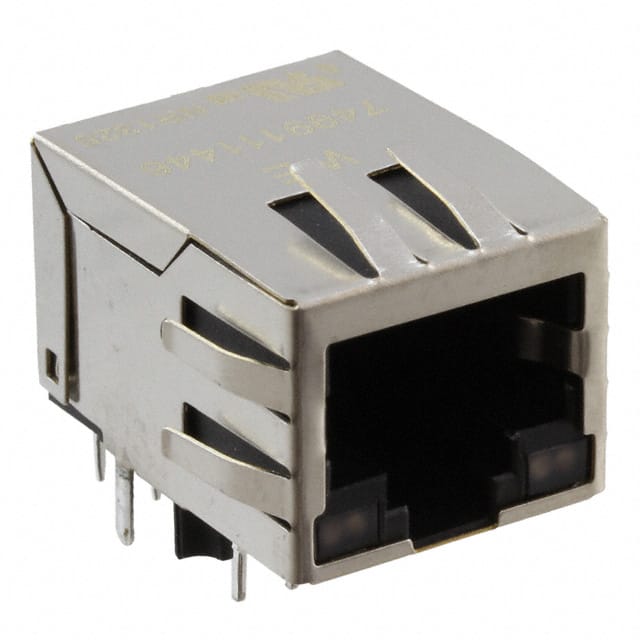

The 7499111446 is a single-port RJ45 jack with integrated magnetics from Würth Elektronik, part of the WE-RJ45LAN series. This connector is designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. It features a through-hole mounting style with solder termination and a shielded design that includes an EMI finger for enhanced electromagnetic compatibility. The jack is oriented at a 90° right angle with the tab facing down, and it includes a board guide for easy alignment during assembly.
The connector measures 21.25 mm in length, 16.0 mm in width, and 13.95 mm in height above the board. It operates over a temperature range of -40°C to 85°C, making it suitable for industrial environments. The jack is equipped with dual LEDs (yellow and green) for status indication. The contact area is finished with gold, while the contact material is listed as tin (low confidence, typical material is phosphor bronze). The housing is shielded and includes a panel cutout specification for mounting.
This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited) per the manufacturer, though these compliance statements are unverified. The part is cross-referenced with Digi-Key number 732-4960-ND. It is suitable for use in networking equipment, industrial controls, and other applications requiring reliable Ethernet connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.31 | $11.31 |
| 10+ | $11.12 | $11.12 |
| 50+ | $10.32 | $10.32 |
| 100+ | $9.53 | $9.53 |
| 500+ | $8.73 | $8.73 |
| 1,000+ | $7.94 | $7.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 port.
Through hole.
RJ45.
Shielded with EMI finger.
Yellow, Green - Yellow, Green.
-40°C to 85°C.
10/100/1000 Base-T and AutoMDIX.
