| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

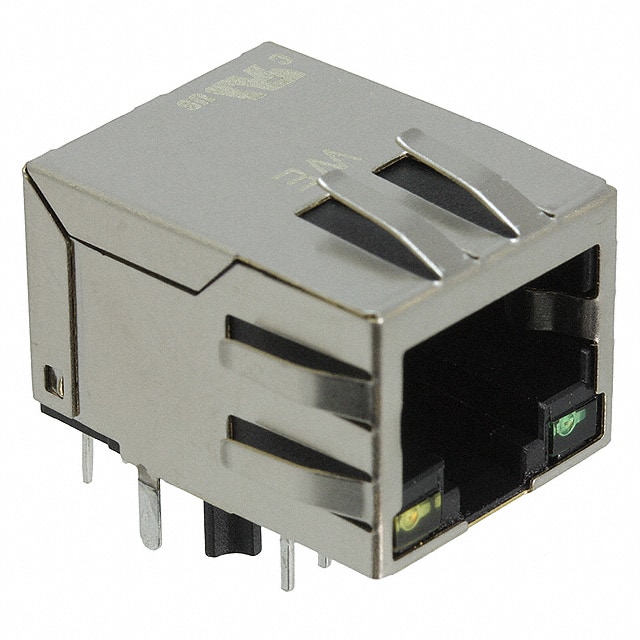

The 7499111121A is a single-port RJ45 modular jack with integrated magnetics from Würth Elektronik, part of the WE-RJ45LAN series. It features a through-hole mounting with right-angle orientation and a shielded design with EMI finger for electromagnetic interference suppression. The jack includes a yellow-green LED indicator for link/activity status.
The connector supports 10/100/1000 Base-T Ethernet with AutoMDIX, making it suitable for high-speed data networking applications. It has 8 contacts with gold plating on the contact area and tin on the contact material, ensuring reliable electrical connections. The integrated magnetics include 1:1 transformers with 75Ω termination resistors and a 0.001μF/2kV capacitor for DC isolation.
Mechanical specifications include a height above board of 13.95mm, solder termination, and a board guide feature for alignment during assembly. The operating temperature range is -40°C to 85°C, suitable for industrial environments. The connector is designed for use in Ethernet switches, routers, and other networking equipment requiring compact, high-performance magnetic integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.69 | $8.69 |
| 10+ | $8.58 | $8.58 |
| 50+ | $8.04 | $8.04 |
| 100+ | $7.24 | $7.24 |
| 500+ | $6.42 | $6.42 |
| 986+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through Hole mounting.
RJ45.
1 port.
90° Angle (Right).
Yes, shielded with EMI finger.
10/100/1000 Base-T and AutoMDIX.
-40°C to 85°C.
