| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Contacts | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

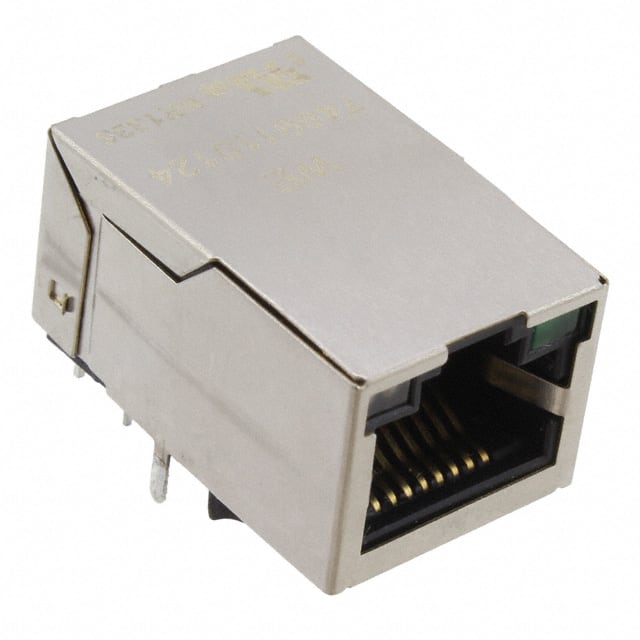

The Würth Elektronik 7499110124 is a single-port RJ45 modular connector jack with integrated magnetics, part of the WE-RJ45LAN series. It features 8 contacts arranged in 1 row with gold plating for reliable signal integrity. The connector is shielded and oriented at a 90° right angle with the tab facing up.
This jack supports 10/100/1000 Base-T Ethernet with AutoMDIX capability. It includes dual LEDs (green and yellow-green) for link/activity indication. The part is designed for through-hole soldering and incorporates a board guide feature for accurate PCB alignment.
The operating temperature range spans -40°C to 85°C, suitable for industrial environments. Height above board is 13.49mm. The connector is RoHS3 compliant and MSL 1 (unlimited) per the available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.25 | $13.25 |
| 10+ | $13.02 | $13.02 |
| 50+ | $12.09 | $12.09 |
| 100+ | $11.16 | $11.16 |
| 500+ | $10.23 | $10.23 |
| 1,000+ | $9.30 | $9.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45
1
Yes, it is shielded.
Through Hole
10/100/1000 Base-T with AutoMDIX
-40°C to 85°C
