| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Hipot Test Voltage | |
| Inductance (OCL) | |
| LED Color | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Termination | |
| Termination Style | |
| Turns Ratio |

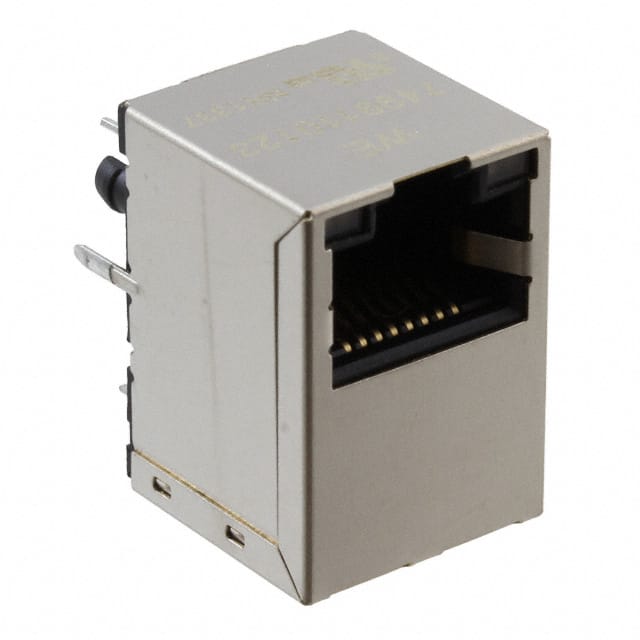

The Würth Elektronik 7499110123 is a single port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications compliant with IEEE 802.3ab. It features a vertical through hole mounting style with a user-selectable tab direction and a shielded housing to reduce EMI. The connector includes two LEDs (Green and Yellow) for link/activity indication. Electrical specifications include a turns ratio of 1:1 for both Tx and Rx, and a typical open circuit inductance of 350 µH at 100kHz/100mV. The hipot test voltage is 1500 Vrms minimum. The contact finish is gold over 100% tin with nickel underplating, and the housing is made of thermoplastic UL-94V0. The operating temperature range is -40°C to +85°C. The connector is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $11.31 | $11.31 |
| 10+ | $11.12 | $11.12 |
| 50+ | $10.32 | $10.32 |
| 100+ | $9.53 | $9.53 |
| 500+ | $8.73 | $8.73 |
| 1,000+ | $7.94 | $7.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (8 cores per jack).
Through hole mounting.
-40°C to +85°C.
Yes, it is shielded.
Gold plating on contact area.
1500 Vrms minimum for 1 minute.
