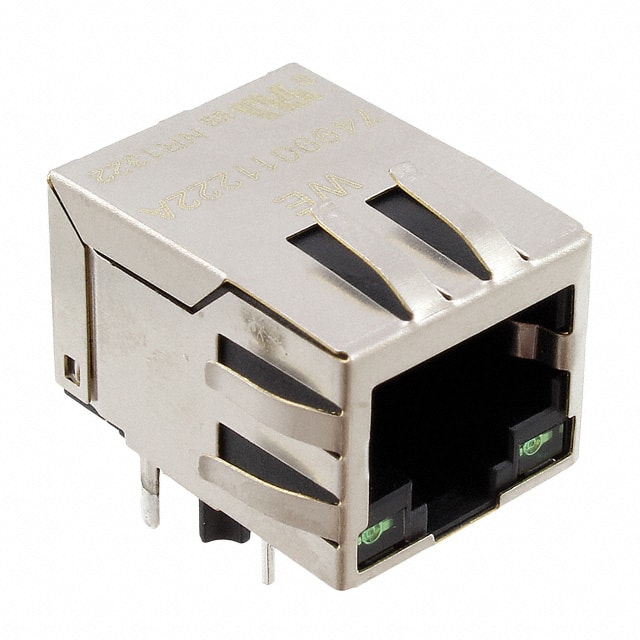

The 7499011222A from Würth Elektronik is a single port RJ45 modular jack with integrated magnetics, part of the WE-RJ45LAN series. It is designed for 10/100 Base-T Ethernet applications with AutoMDIX support. The connector features a 90° right angle orientation and through hole mounting, making it suitable for PCB layouts where space is constrained. The shielded design includes an EMI finger for enhanced electromagnetic compatibility, and a board guide aids in alignment during assembly.
Electrical specifications include a 4-core transformer integrated into the jack, with the schematic showing center-tapped pairs and 75 ohm resistors for impedance matching. The contact material is tin (plating) with gold finish, ensuring reliable connections. Dual green LEDs provide visual indication, and the tab direction is down.
Mechanical dimensions are provided in the datasheet, with a height above board of 13.95mm. The recommended hole pattern and panel cutout are detailed for proper PCB layout. The operating temperature range is -40°C to 85°C, suitable for industrial environments. Contact finish is gold over tin, and the termination style is solder.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.57 | $8.57 |
| 10+ | $8.42 | $8.42 |
| 58+ | $7.82 | $7.82 |
| 116+ | $7.22 | $7.22 |
| 522+ | $6.61 | $6.61 |
| 1,015+ | $6.01 | $6.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This jack has 1 port.
Through hole mounting.
90° right angle (right angle).
Yes, it is shielded with an EMI finger.
-40°C to 85°C.
Green - Green (two green LEDs).
10/100 Base-T and AutoMDIX.
