| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Auto MDIX Capable | |
| Base Material | |
| Common Mode Rejection | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Crosstalk | |
| Features | |
| Height Above Board | |
| Hipot Test Voltage | |
| Housing Material | |
| Inductance (OCL) | |
| Insertion Loss | |
| LED Color | |
| LED Current | |
| LED Forward Voltage | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Return Loss (Minimum @ 1-10 MHz, 100Ω) | |
| Return Loss (Minimum @ 10-30 MHz @ 100Ω) | |
| Return Loss (Minimum @ 30-60 MHz @ 100Ω) | |
| Return Loss (Minimum @ 60-80 MHz @ 100Ω) | |
| Shield Material | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style | |
| Turns Ratio | |
| Wire Insulation |

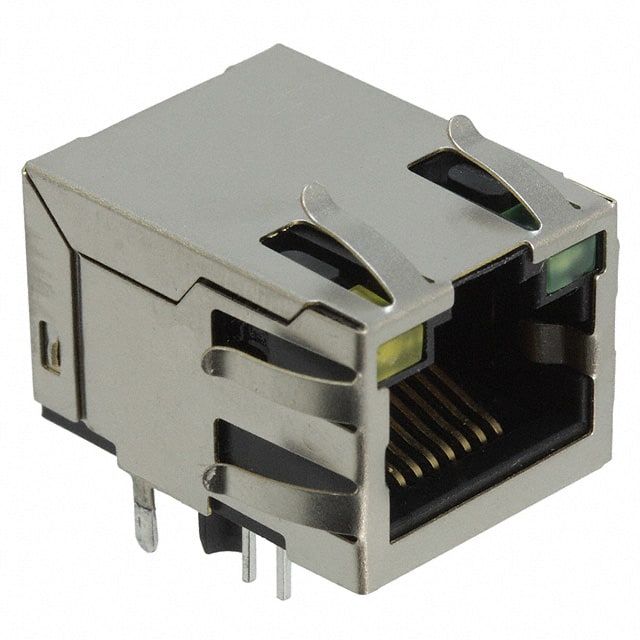

The Würth Elektronik 74990111217 is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications meeting IEEE 802.3u. This through hole, right-angle (90°) component simplifies PCB layout by combining the connector and magnetics in one package.
Electrical performance includes a 1:1 turns ratio for both Tx and Rx channels, with an open circuit inductance (OCL) of 350 µH typical at 100kHz. The insertion loss is a maximum of -1.0 dB from 1 to 100MHz, and return loss meets minimum levels of -18 dB (1-10MHz), -16 dB (10-30MHz), -12 dB (30-60MHz), and -10 dB (60-80MHz). Common mode rejection and crosstalk are both a minimum of -30 dB across the frequency range. The part supports AutoMDIX and has a hipot test rating of 1500 Vrms for 1 minute.
The connector is fully shielded with an EMI finger and has a board guide feature. The housing is made of thermoplastic UL-94V0, with contacts having 100% tin with nickel underplating and 30 µin gold plating on the contact area. The shield is 50 µin nickel over 0.01 in copper alloy. Operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.76 | $8.76 |
| 10+ | $8.61 | $8.61 |
| 50+ | $7.99 | $7.99 |
| 100+ | $7.38 | $7.38 |
| 500+ | $6.76 | $6.76 |
| 1,000+ | $6.15 | $6.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to +85°C
Yes, it is shielded with an EMI finger.
10/100 Base-T (IEEE 802.3u) with AutoMDIX capability.
Through hole, right angle (90°) with tab direction up.
Maximum -1.0 dB from 1 to 100MHz.
RoHS3 Compliant (unverified).
1.8 to 2.8 V at 20 mA.
