| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

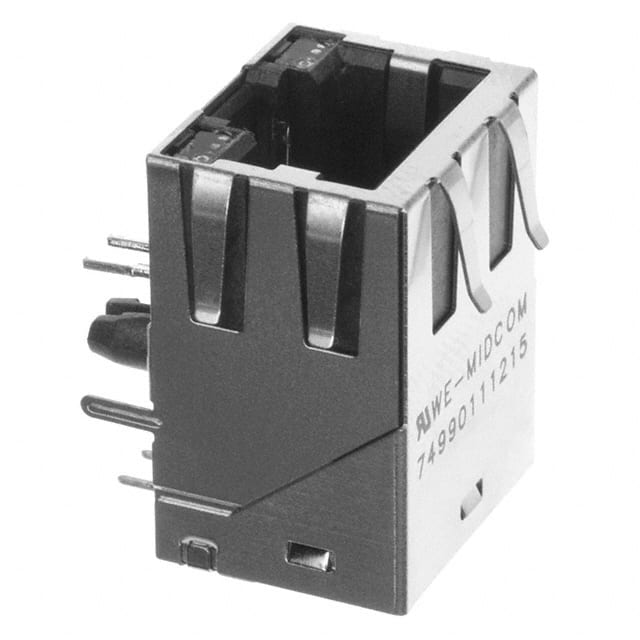

The Würth Elektronik 74990111215 is a 1-port RJ45 jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a through-hole mounting with a 90° right-angle orientation and tab down, making it suitable for compact PCB layouts. The connector is shielded with an EMI finger to suppress electromagnetic interference, and it has gold-plated contacts for reliable connectivity.
With a height above board of 0.541 inches (13.75mm), this jack includes a board guide for alignment and a yellow-green LED for status indication. It supports 6 cores per jack and uses solder termination. The operating temperature range is 0°C to 70°C, allowing use in typical commercial environments.
This component is ideal for networking equipment requiring integrated magnetics, reducing external component count and simplifying PCB design. Its AutoMDIX support ensures automatic crossover detection, making it versatile for various network interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.84 | $8.84 |
| 10+ | $8.69 | $8.69 |
| 50+ | $8.07 | $8.07 |
| 100+ | $7.45 | $7.45 |
| 500+ | $6.83 | $6.83 |
| 1,000+ | $6.20 | $6.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45
1 port
Through hole
90° angle (right)
Yes, with EMI finger
10/100 Base-T, AutoMDIX
0°C to 70°C
