| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

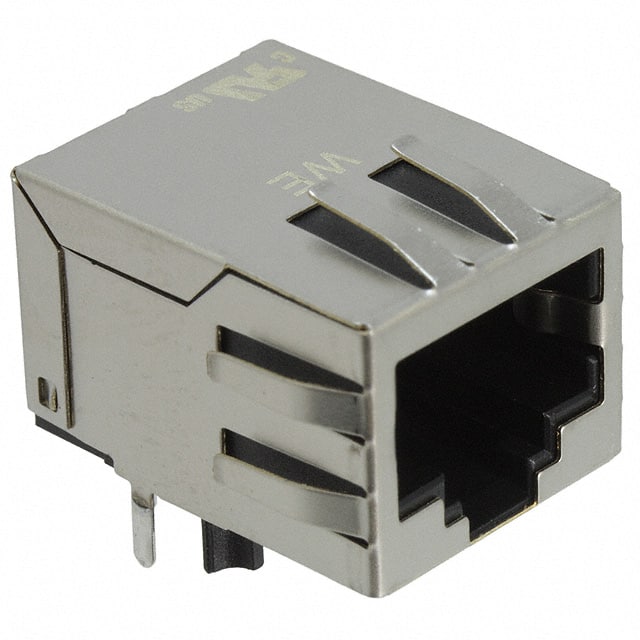

The 7499011002A is a 1-port RJ45 modular jack with integrated magnetics from Würth Elektronik, part of the WE-RJ45LAN series. It is designed for 10/100 Base-T Ethernet applications with AutoMDIX support. The connector features a through hole mounting style with solder termination and a 90° right angle orientation, tab down. It is shielded with an EMI finger for electromagnetic interference suppression. The jack includes a board guide feature for easy alignment during assembly. It operates over a temperature range of 0°C to 70°C. Contact finish is gold with tin contact material. The height above board is 0.541 inches (13.75 mm).
This connector is suitable for use in networking equipment, routers, switches, and other devices requiring 10/100 Base-T connectivity. The integrated magnetics reduce external component count and simplify PCB layout. The through hole package provides robust mechanical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.37 | $6.37 |
| 10+ | $6.19 | $6.19 |
| 50+ | $5.90 | $5.90 |
| 100+ | $5.60 | $5.60 |
| 500+ | $5.01 | $5.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting type is Through Hole with solder termination.
90° Angle (Right) with tab down.
10/100 Base-T and AutoMDIX.
0°C to 70°C.
Yes, it is shielded with an EMI finger.
Gold.
1 port.
