| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
147 pcs
|
147 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height | |
| Height Above Board | |
| Industrial Grade | |
| LED Color | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Width |

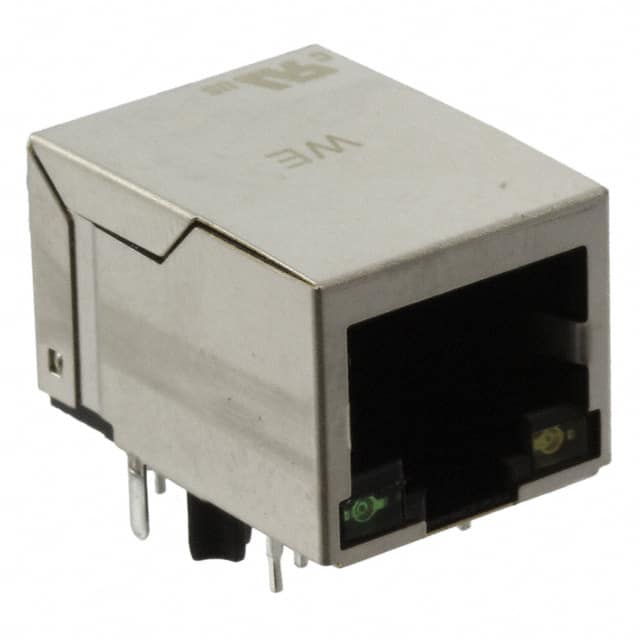

The Würth Elektronik 7499010211A is a single-port RJ45 modular connector jack with integrated magnetics, part of the WE-RJ45LAN series. This through-hole component features a right-angle (90°) orientation with a downward tab direction, making it suitable for edge-mounted PCB applications. The connector is fully shielded for enhanced EMI protection and includes a board guide for reliable alignment during assembly.
Designed for 10/100 Base-T Ethernet networks, the 7499010211A supports AutoMDIX for automatic crossover detection, simplifying network cabling. It is equipped with dual green and yellow LEDs for link and activity status indication. The contact pins are gold-plated for reliable connectivity, while the contact base material is tin. The connector measures 16.0 mm in length, 10.89 mm in width, and 13.5 mm in height, with a height above board of 13.49 mm.
This component is suitable for use in general electronic equipment, including networking devices, industrial controls, and communication interfaces. It operates over a temperature range of 0°C to 70°C. The datasheet provides detailed dimensions, recommended hole patterns, and panel cutout specifications for PCB layout design.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.26 | $8.26 |
| 10+ | $8.12 | $8.12 |
| 25+ | $8.11 | $8.11 |
| 50+ | $7.54 | $7.54 |
| 93+ | $6.96 | $6.96 |
| 279+ | $6.38 | $6.38 |
| 527+ | $5.80 | $5.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is RJ45.
It has 1 port.
The mounting type is Through Hole.
Yes, it is shielded.
It supports 10/100 Base-T with AutoMDIX.
The operating temperature range is 0°C to 70°C.
The LED colors are Green and Yellow.
